Description
The STF11NM80 is a 800V N-channel Power MOSFET developed using revolutionary MDmesh� technology, which associates the multiple drain process with the PowerMESH� horizontal layout. This MOSFET offers extremely low on-resistance, high dv/dt and excellent avalanche characteristics. Utilizing proprietary strip technique, MOSFET boasts an overall dynamic performance which is superior.
- Low input capacitance and gate charge
- Low gate input resistance
- Best RDS (on)
- High peak power
- High ruggedness capability
Applications
Industrial
Product details
| Power Dissipation Pd | 35W |
| Operating Temperature Max | 150�C |
| Continuous Drain Current Id | 11A |
| Transistor Polarity | N Channel |
| No. of Pins | 3Pins |
| Threshold Voltage Vgs | 4V |
| Product Range | - |
| Drain Source Voltage Vds | 800V |
| Rds(on) Test Voltage Vgs | 10V |

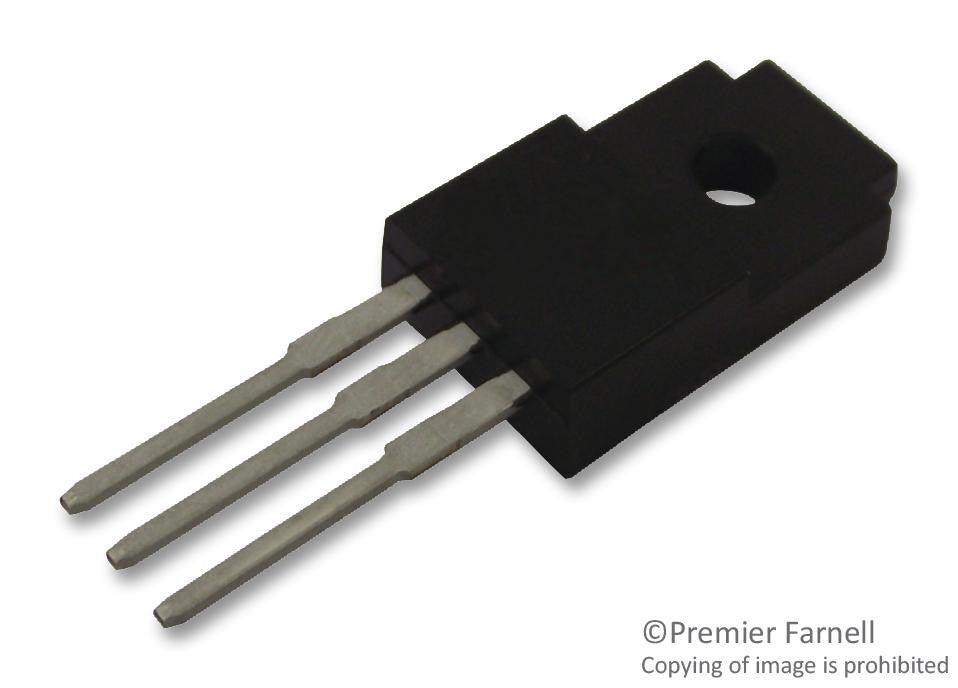

| Transistor Case Style | TO-220FP |
| On Resistance Rds(on) | 0.35ohm |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STF11NM80 |
| Quantity | Each |
| Technical Data Sheet EN |  |
