Description

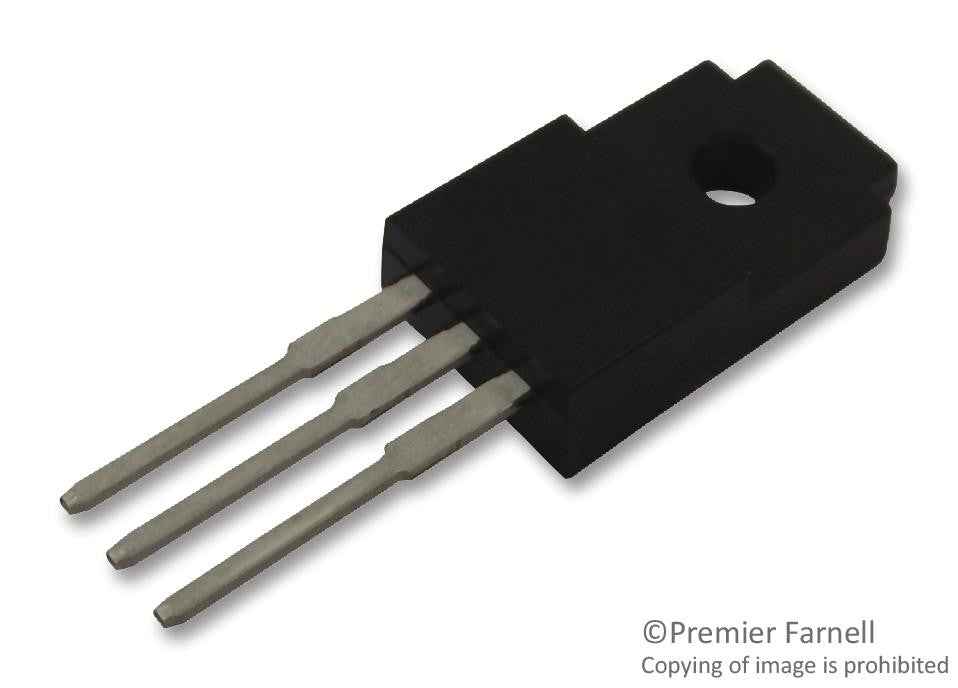

This is a Power MOSFET, N Channel, 10 A, 600 V, 0.53 ohm, 10 V, 3 V product from STMICROELECTRONICS with the model number STF10NM60N
Product details
| Power Dissipation Pd | 25W |
| Operating Temperature Max | 150°C |
| Continuous Drain Current Id | 10A |
| Transistor Polarity | N Channel |
| No. of Pins | 3Pins |
| Threshold Voltage Vgs | 3V |
| Product Range | - |
| Drain Source Voltage Vds | 600V |
| Rds(on) Test Voltage Vgs | 10V |
| Transistor Case Style | TO-220FP |
| On Resistance Rds(on) | 0.53ohm |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STF10NM60N |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 503.05 |
| 3-5 | ₹ 497.92 |
| 5-10 | ₹ 487.65 |
| 10+ | ₹ 477.39 |
Bulk discount will be automatically applied during checkout based on quantity.
