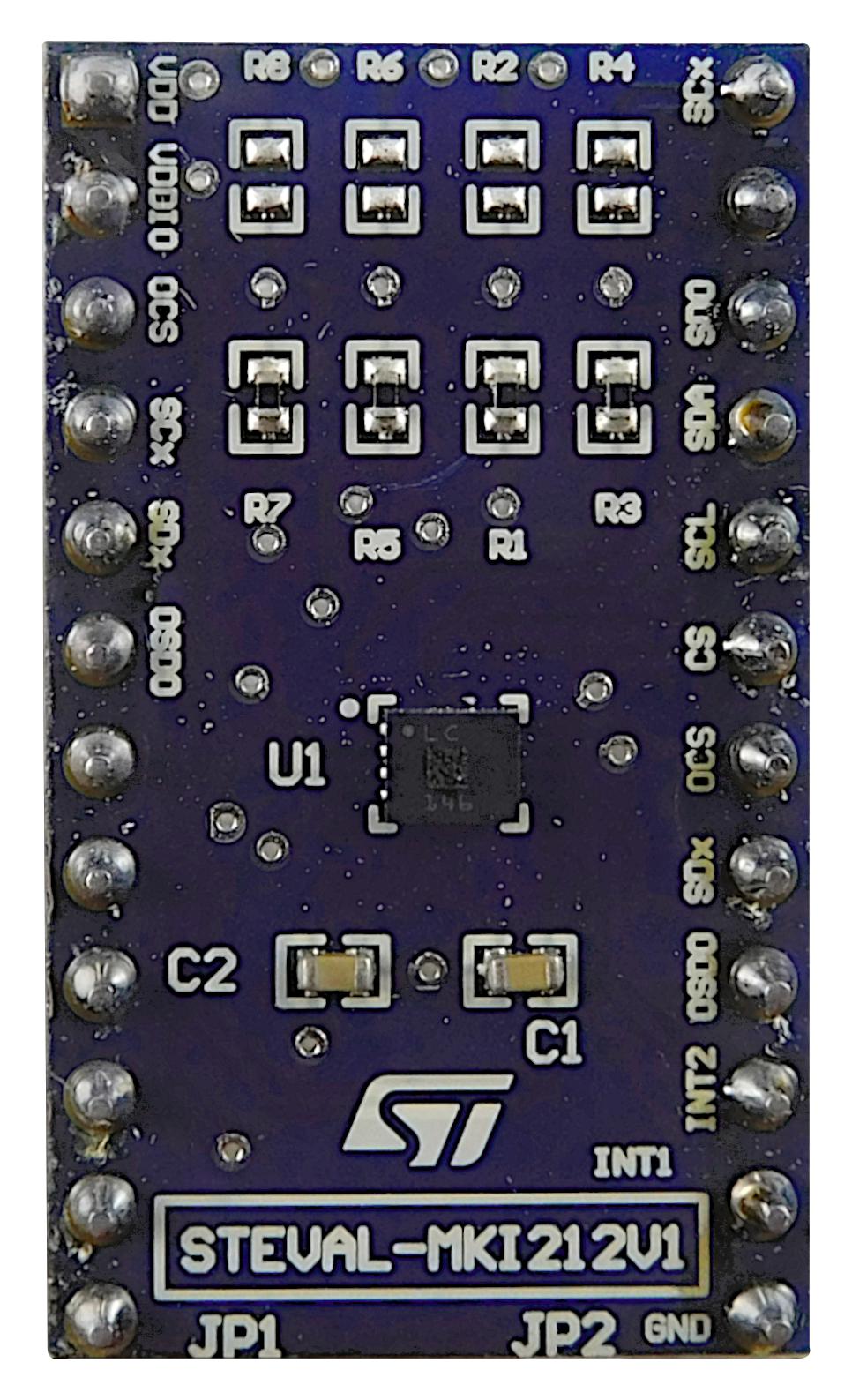

STEVAL-MKI212V1 is an adapter board designed to facilitate the evaluation of MEMS devices in the ASM330LHHX product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user's own application. The STEVAL-MKI212V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete ASM330LHHX pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line. This adapter is supported by the STEVAL-MKI109V3 motherboard, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico-GUI), or dedicated software routines for customized applications. The adapter board can also be plugged into the X-NUCLEO-IKS01A2, X-NUCLEO-IKS01A3, and X-NUCLEO-IKS01A1 expansion boards using the Unicleo-GUI.
- Complete ASM330LHHX pinout for a standard DIL 24 socket
- Fully compatible with the STEVAL-MKI109V3 motherboard
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STEVAL-MKI212V1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
