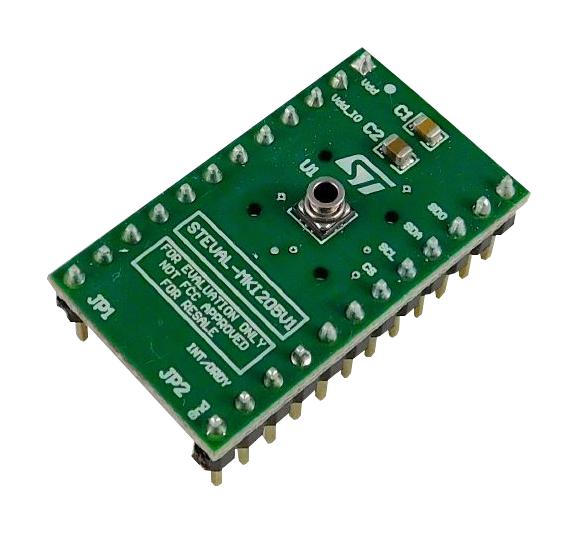

The LPS33W MEMS pressure Sensor is an ultra-compact piezo resistive pressure sensor which functions as a digital output barometer. The device comprises a sensing element and an IC interface which communicates through I2C or SPI from the sensing element to the application.
- Pressure sensor with potted gel package
- 261 to 1260 hPa absolute pressure range
- Current consumption down to 3 µA
- High overpressure capability: 20x full scale
- Embedded temperature compensation
- 24-bit pressure data output
- 16-bit temperature data output
- ODR from 1 Hz to 75 Hz
- SPI and I²C interfaces
- Embedded FIFO
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STEVAL-MKI205V1 |
| Quantity |
Each |
