- Temperature probe kit based on STLM75 temperature sensor
- User friendly STLM75 board
- Complete STLM75 pinout for a standard DIL 24 socket
- Fully compatible with and STEVAL-MKI109V3 motherboards
- Small package dimensions allow it to be mounted on top of a very thin probe
- Can take temperature readings not influenced by heat from other electronic components or boards
- Comes ready-to-use with the required decoupling capacitors on the VDD power supply line

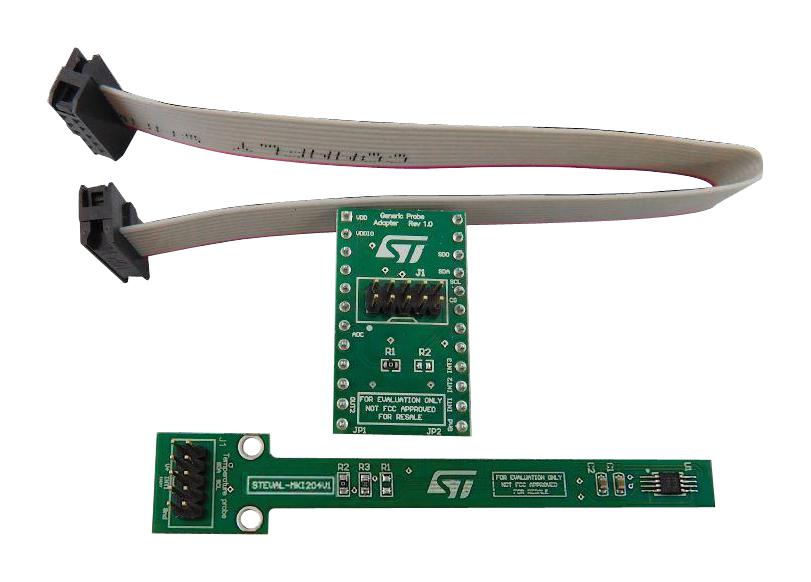

- Consists of probe with STLM75 sensor connected via flat cable to STEVAL-MKIGIBV1 adapter board
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STEVAL-MKI204V1K |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
