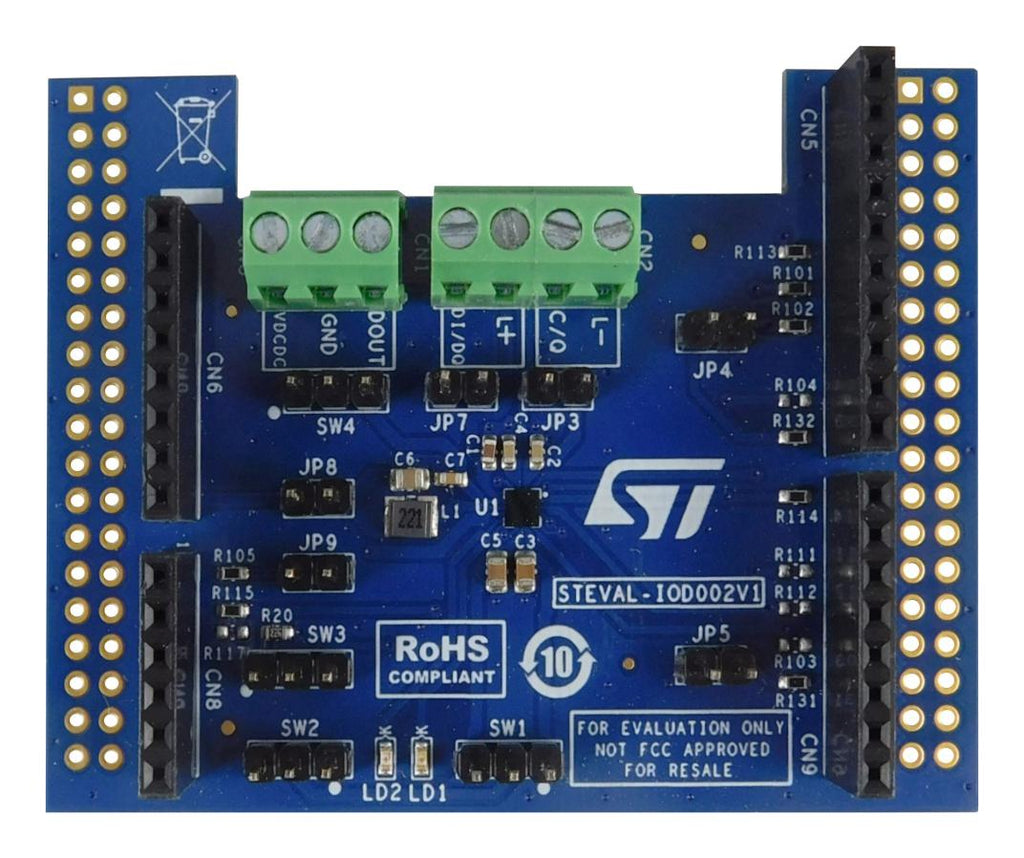

Dual channel IO-Link device expansion board based on L6364W for STM32 Nucleo. Expansion board for STM32 Nucleo is based on the L6364W dual channel SIO and IO-Link PHY device transceiver embedding 50mA 3.3V and 5V voltage regulators, DC-DC converter and M-sequence management. The expansion board provides an affordable and easy-to-use solution for the development of SIO and IO-Link industrial sensor applications, letting you easily evaluate the L6364W communication features and robustness. Communicates with the STM32 controller via SPI and GPIO pins and it is compatible with the Arduino UNO R3 (default configuration) and ST morpho (optional not mounted) connectors (when connected to a NUCLEO-L073RZ or NUCLEO-G071RB development board).
- Based on the L6364W IO-Link device dual transceiver with the following main characteristics
- 2-channel (CQ and DIO) IO-Link PHY layer, wake-up detection, interrupt diagnostic pin
- SPI and UART interfaces, full reverse polarity on process side, ground and VCC wire break protection
- Red LED and green LED for status diagnostics
- Radiated Emissions (EM Fields 30MHz-1GHz) < 40dB µV/m
- Immunity to conducted disturbance (150KHz-80MHz) <= 10V
- Immunity to RF EM fields (80MHz-1GHz) <= 10V/m
- Immunity to SURGE pulse (500 ohm coupling) <= ± 1.2KV, immunity to ESD contact/air <= ±3KV
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Silicon Manufacturer |
STMicroelectronics |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
L6364W |
| Silicon Family Name |
- |
| For Use With |
STMicroelectronics STM32 Nucleo Development Boards |
| Kit Contents |
IO-Link Device Expansion Board L6364W |
| Product Range |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STEVAL-IOD002V1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
