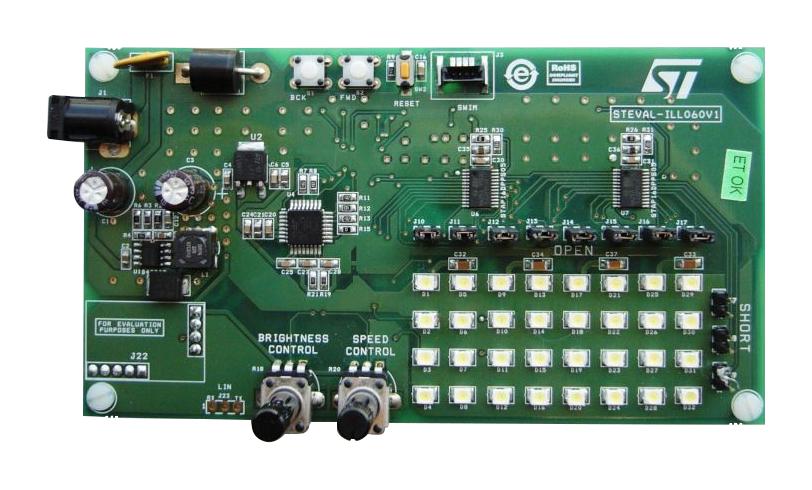

High brightness LED array driver with diagnostics evaluation board for automotive applications based on the STAP16DPPS05 automotive-grade low voltage 16bit constant current LED sink driver and STM8A. The LED driver is configured and controlled through an 8bit automotive-grade STM8A microcontroller via an SPI interface. An A5974D DC-DC converter, also automotive-grade provides the voltages and power needed for overall operation of the board. 6VDC to 24VDC power supply with reverse voltage protection, short-circuit protection and input surge protection and standard DC jack input.
- Backward/forward transition switch to change modes
- SWIM connector for MCU programing and debugging
- Connector for LIN development and evaluation
- Potentiometer to change brightness and speed of patterns
- 32 white LEDs (PLCC 4)
- 8 jumpers to simulate open-circuit error, 4 jumpers, to simulate short-circuit error
- USB-UART bridge to interface board with GUI
- Demonstrates pre-configured patterns with adjustable brightness/speed
- Demonstrates basic mode or frame programming mode with GUI SW
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STEVAL-ILL060V1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
