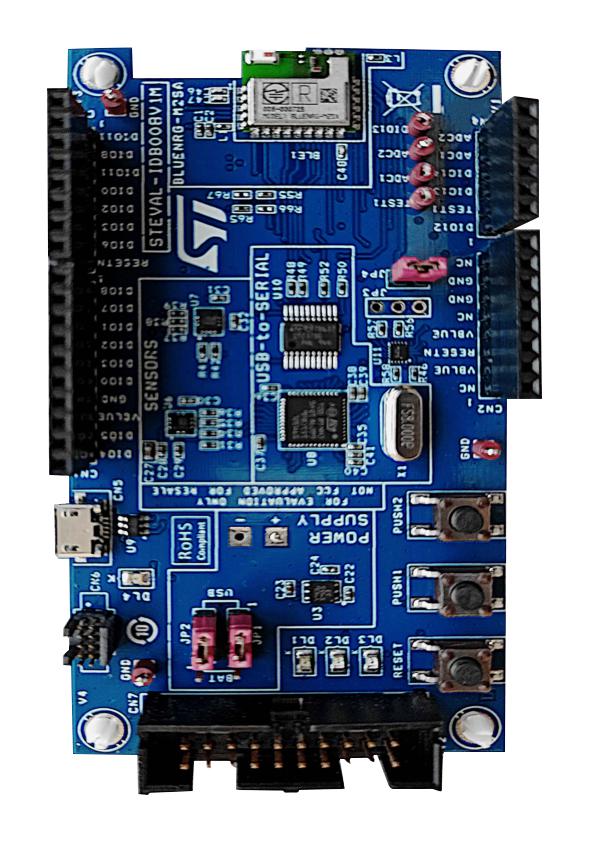

- Evaluation platform based on the BlueNRG-M2SA module
- Embedding BlueNRG-M2SA certified module based on BlueNRG-2 Bluetooth low energy SoC
- Associated BlueNRG-2 development kit software package (STSW-BLUENRG1-DK)
- Up to +5 dBm available output power
- Bluetooth low energy v5.0 compliant, supports master, slave and simultaneous master-and-slave roles
- Integrated balun with matching network and harmonics filter
- Three user LEDs and two user buttons
- 3D digital accelerometer and 3D digital gyroscope
- MEMS pressure sensor with embedded temperature sensor, battery holder, JTAG debug connector
- USB to serial bridge for I/O channel with the BlueNRG-2 device
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STEVAL-IDB008V1M |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
