| ₹ 4914.79 includes GST and import duties. | |
| B2B customers can avail ₹ 749.51 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

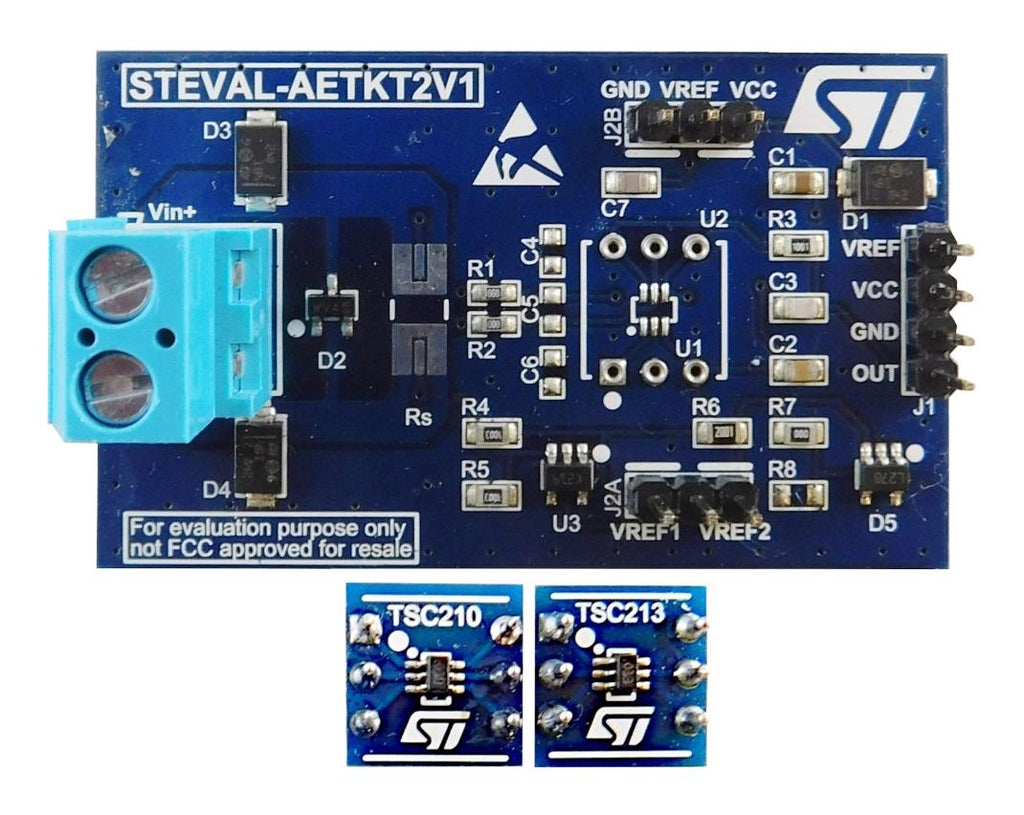

STEVAL-AETKT2V1 evaluation kit implements bidirectional current sense amplifiers by placing a sense resistor either in the high-side or in the low-side. The STEVAL-AETKT2V1 kit consists of a motherboard and two different daughterboards for different gain configurations. The TSC21x family implements zero drift technology and is specially designed to accurately measure current by amplifying the voltage across a shunt resistor connected to its input. The voltage drop (Vsense) is then amplified by an amplifier.
- Input common mode voltage: 26 V
- Offset voltage: ±35 µV (±100 µV) max
- Offset drift: 0.1 µV/°C max
- Gain drift: 20 ppm/°C max
- 2.7 to 26 V supply voltage
- Quiescent current is 100µA maximum
- SC70-6 and QFN10 (1.8 x 1.4mm) package
- Temperature range from -40 to 125°C
- Gain configuration from 50V/V to 1000V/V
Motherboard, Two daughter boards.
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | STMICROELECTRONICS |
| Part Number | STEVAL-AETKT2V1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 4816.49 |
| 3-5 | ₹ 4767.35 |
| 5-10 | ₹ 4669.05 |
| 10+ | ₹ 4570.75 |
Bulk discount will be automatically applied during checkout based on quantity.
