Description
USB charging controller with integrated power switch. The device emulates several profiles compatible with the USB battery charging standard, BC1.2, Chinese telecommunications standard YD/T 1591-2009, and proprietary charger modes. Typical applications include USB ports / hubs, personal computers, all-in-one PCs, monitors, notebooks, ultrabooks, tablet PCs and universal wall charging adapters.
- Compliant with USB charging specifications BC1.2, USB 2.0 and USB 3.0 standards
- Wide bandwidth, low-loss USB 2.0 data switch
- Integrated VBUS power switch with low RON of 65mohm
- Constant current mode overcurrent protection
- Soft-start to limit inrush current, adjustable current limit up to 2.8A
- Short-circuit, thermal and undervoltage protection
- Reverse voltage and reverse current protection
- Deglitched fault reporting output
- Supports remote wakeup in S3
- Charging indication output in DCP and CDP modes
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| USB IC Type: USB Charging Controller |
| USB Standard: USB 2.0, 3.0 |
| Supply Voltage Min: 4.5V |
| Supply Voltage Max: 5.5V |

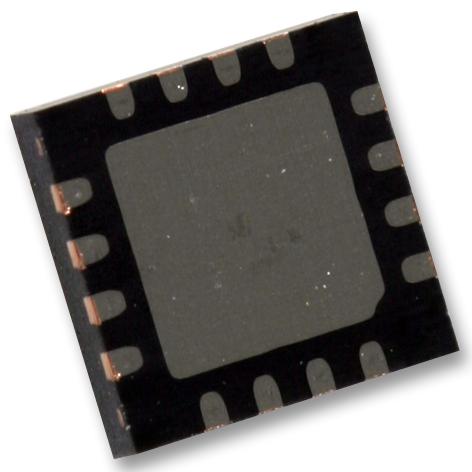

| IC Case / Package: VFQFN |
| No. of Pins: 16Pins |
| Data Rate: - |
| No. of Ports: 1Ports |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Product Range: - |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STCC2540IQTR |
| Quantity | Each |
| Technical Data Sheet EN |  |
