Description

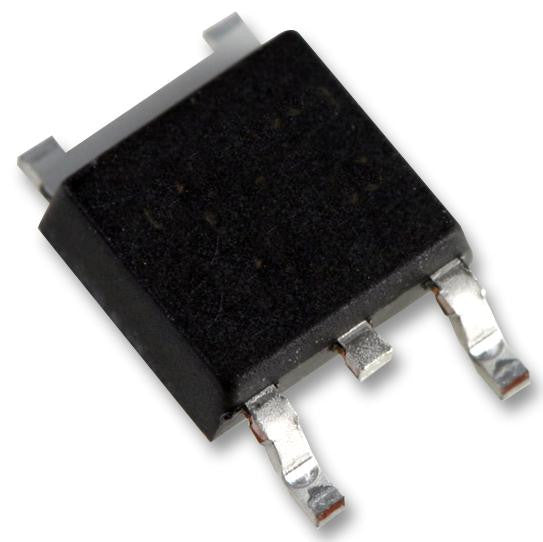

This is a MOSFET Transistor, N Channel, 4.5 A, 400 V, 490 mohm, 10 V, 3.75 V product from STMICROELECTRONICS with the model number STB11NK40ZT4
Product details
| Power Dissipation Pd | 110W |
| Operating Temperature Max | 150°C |
| Continuous Drain Current Id | 4.5A |
| Transistor Polarity | N Channel |
| No. of Pins | 3Pins |
| Threshold Voltage Vgs | 3.75V |
| Product Range | - |
| Automotive Qualification Standard | - |
| Drain Source Voltage Vds | 400V |
| Rds(on) Test Voltage Vgs | 10V |
| Transistor Case Style | TO-263 |
| On Resistance Rds(on) | 0.49ohm |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STB11NK40ZT4 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
