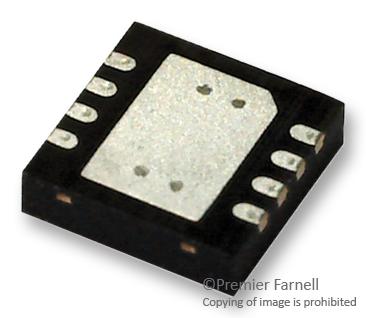

Stmicroelectronics ST2L05R3300PS LDO Voltage Regulator Fixed Adjustable 4.5V to 7V In 3.3V/1A; 5.7V/1 A 1.1Vdo DFN-8

This is a LDO Voltage Regulator, Fixed, Adjustable, 4.5V to 7V In, 3.3V/1A; 5.7V/1 A, 1.1Vdo, DFN-8 product from STMICROELECTRONICS with the model number ST2L05R3300PS

Product details

Input Voltage Max	7V
Input Voltage Min	4.5V
No. of Outputs	2 Output
Regulator Output Type	Fixed, Adjustable
LDO Regulator Case Style	DFN
No. of Pins	8Pins
Output Current - Output 1	1A
Output Current - Output 2	1A
Output Voltage - Output 1	3.3V
Output Voltage - Output 2	5.7V
Dropout Voltage Vdo	1.1V
Product Range	-
Automotive Qualification Standard	-
MSL	MSL 1 - Unlimited

Other details

Brand	STMICROELECTRONICS
Part Number	ST2L05R3300PS
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
