Description
The ST26C31BDR is a quad 3-state CMOS differential Line Driver designed for digital data transmission over balanced lines and meets all the requirements of EIA standard RS-422 while retaining the low power characteristics of CMOS. The ST26C31B accepts TTL or CMOS input levels and translates these to RS-422 output levels. This part uses special outputs circuitry common to all four drivers. All outputs are protected against damage due to electrostatic discharge by diode to VCC and ground.
- 3-state Outputs for connection to system buses
- Available in surface mount
- TTL input compatible
- Meets the requirements of EIA standard RS-422
- Low quiescent current
- Output will not load line when VCC = 0V
- 0.5ns Typical output skew
- 6ns Typical propagation delay
Applications
Communications & Networking
Product details
| Operating Temperature Min | -40°C |
| Driver Case Style | SOIC |
| Operating Temperature Max | 85°C |
| No. of Pins | 16Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| No. of Drivers | - |
| Supply Voltage Min | 4.5V |
| IC Interface Type | RS422 |
| Device Type | Line |
| Packaging | Cut Tape |
| Supply Voltage Max | 5.5V |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | ST26C31BDR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

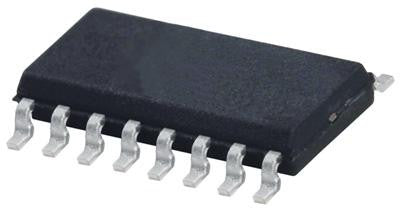

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
