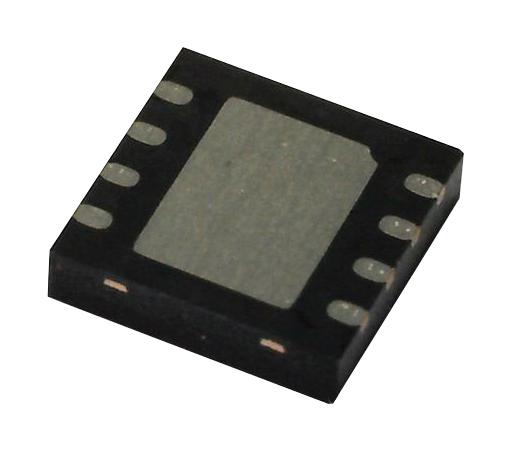

Stmicroelectronics ST1CC40PUR ST1CC40PUR Led Driver 1 Output Buck (Step Down) 3V-18V in 850kHz Switch VFQFPN-8

The ST1CC40PUR is a 3A monolithic step-down Current Source with synchronous rectification. The 850kHz fixed switching frequency monolithic step-down DC-DC converter designed to operate as precise constant current source with an adjustable current capability up to 3A DC. The regulated output current is set connecting a sensing resistor to the feedback pin. The embedded synchronous rectification and the 100mV typical RSENSE voltage drop enhance the efficiency performance. The size of the overall application is minimized thanks to the high switching frequency and ceramic output capacitor compatibility. The device is fully protected against thermal overheating, overcurrent and output short-circuit. Inhibit mode minimizes the current consumption in standby.

• Synchronous rectification
• Peak current mode architecture
• Embedded compensation network
• Internal current limiting
• Ceramic output capacitor compliant
• Thermal shutdown
• 100mV Typical current sense voltage drop
• 6µA Standby current in inhibit mode
• ±7% Output current accuracy
• 95mR HS/69mR LS typical RDS(on)

Applications

Power Management, Lighting, LED Lighting
