Description

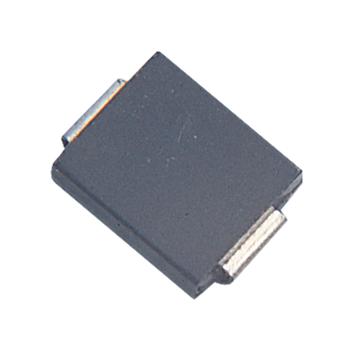

Automotive 1500W Transit� TVS diode designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605.
- AEC-Q101 qualified
- 5.8V to 70V stand-off voltage
- JEDEC registered package outline
- Resin meets UL 94, V0
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: SM15T |
| TVS Polarity: Bidirectional |
| Reverse Standoff Voltage: 28.2V |
| Clamping Voltage Max: 59V |
| Diode Case Style: DO-214AB (SMC) |
| No. of Pins: 2Pins |
| Minimum Breakdown Voltage: 31.4V |
| Maximum Breakdown Voltage: 34.7V |
| Peak Pulse Power Dissipation: 1.5kW |
| Operating Temperature Max: 150°C |
| Diode Mounting: Surface Mount |
| Qualification: AEC-Q101 |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | SM15T33CAY |
| Quantity | Each |
| Technical Data Sheet EN |  |
