Stmicroelectronics P-NUCLEO-LRWAN3 Eval Board Lora LF Band SENSOR/GATEWAY

STM32 Nucleo starter pack for LoRa® technology and high-performance (G)FSK/OOK/(G)MSK modulations. This is a development tool to learn and quickly develop low-power wide-area network (LPWAN) solutions. The pack contains both an LPWAN end-node and its related gateway. On the gateway side, the NUCLEO-F746ZG board, based on a high-performance STM32F7 Arm® 32bit microcontroller controls a RisingHF ARDUINO® expansion board (LRWAN_GS_LF1) used as a basic LoRaWAN® packet forwarder. In that way, data coming from the development node can directly reach LoRaWAN® network servers. On the sensor-node side, the NUCLEO-L073RZ, based on an ultra-low-power STM32L0 Arm® 32bit microcontroller, controls a RisingHF LRWAN_NS1 ARDUINO® expansion board used as a sensor node. The LRWAN_NS1 end-node is an ARDUINO® compatible expansion board. This board is designed by RisingHF around a LoRa® module powered by an STM32L07 device hosting a friendly at command stack.

• STM32 Nucleo pack LoRa� LF band sensor and gateway
• Intended for countries granting radio communications access in freq band higher than 500MHz
• LRWAN_NS1 board features accelerometer, gyroscope, MEMS pressure, humidity, temp, magnetometer

Contents

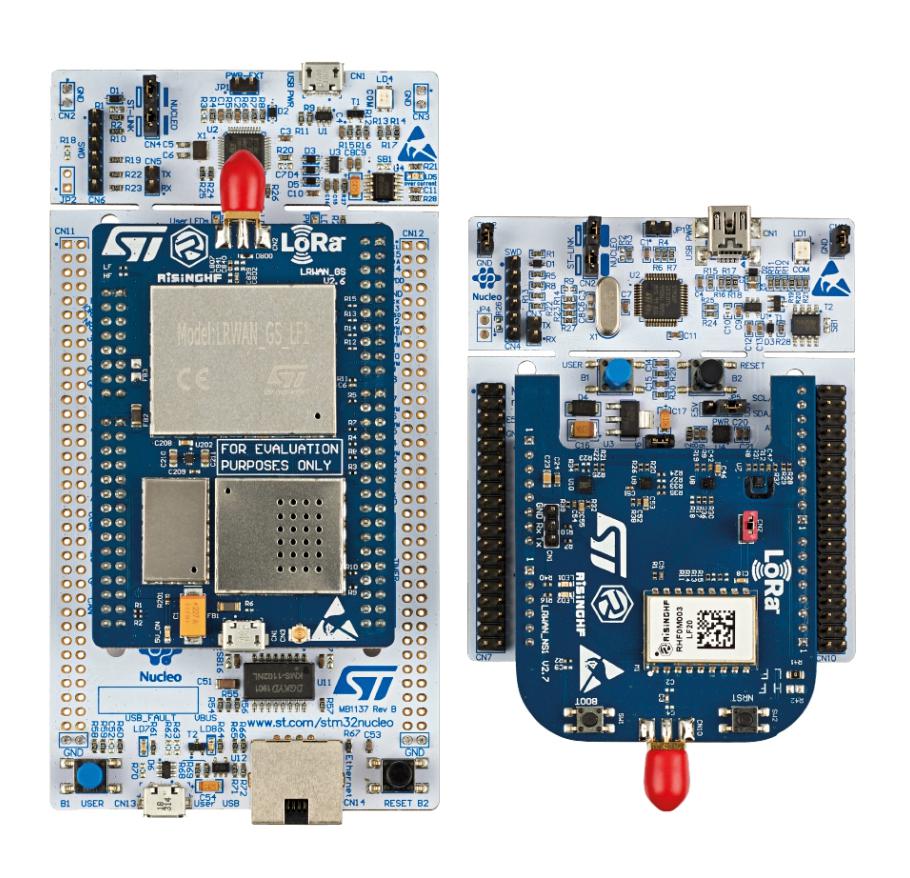

NUCLEO-L073RZ development board , NUCLEO-F746ZG development board, LRWAN_NS1 LoRa® LF sensor expansion board, LRWAN_GS_LF1 LoRa® LF gateway expansion board.

Other details

Brand	STMICROELECTRONICS
Part Number	P-NUCLEO-LRWAN3
Quantity	Each
