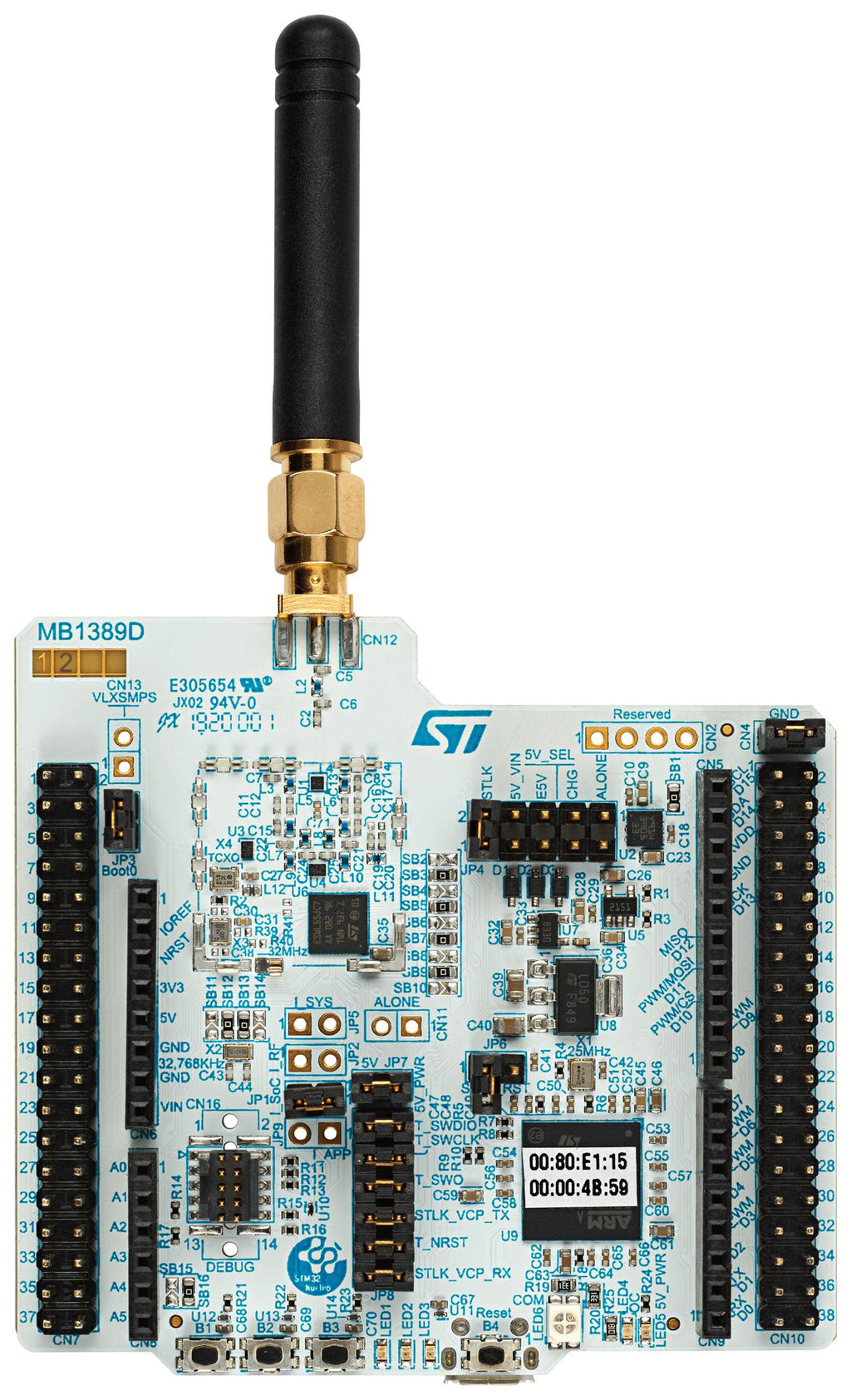

NUCLEO-WL55JC1 STM32WL Nucleo-64 board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32WL Series microcontroller. The ARDUINO® Uno V3 connectivity support and the ST morpho headers provide an easy means of expanding the functionality of the STM32WL Nucleo open development platform with a wide choice of specialized shields. The STM32WL Nucleo-64 board does not require any separate probe as it integrates the STLINK-V3E debugger and programmer. The STM32WL Nucleo-64 board is provided with the STM32WL comprehensive software HAL library and various packaged software examples available with the STM32CubeWL MCU Package.
- STM32WL55JC microcontroller multiprotocol LPWAN dual-core 32-bit in UFBGA73 package
- High-frequency band, RF frequency range from 865 to 928MHz
- 3 user LEDs
- 3 user buttons and 1 reset push-button
- 32.768KHz LSE crystal oscillator
- 32MHz HSE on-board oscillator
- Delivered with SMA antenna
- Flexible power-supply options: ST-LINK, USB VBUS, or external sources
- Support of a wide choice of IDEs including IAR Embedded Workbench®, MDK-ARM and STM32CubeIDE
- Fully open hardware platform
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Silicon Manufacturer |
STMicroelectronics |
| No. of Bits |
32bit |
| Silicon Family Name |
STM32 |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-M0+, Cortex-M4 |
| Silicon Core Number |
STM32WL55JCI |
| Kit Contents |
Nucleo-64 Development Board STM32WL55JCI |
| Product Range |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
NUCLEO-WL55JC1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
