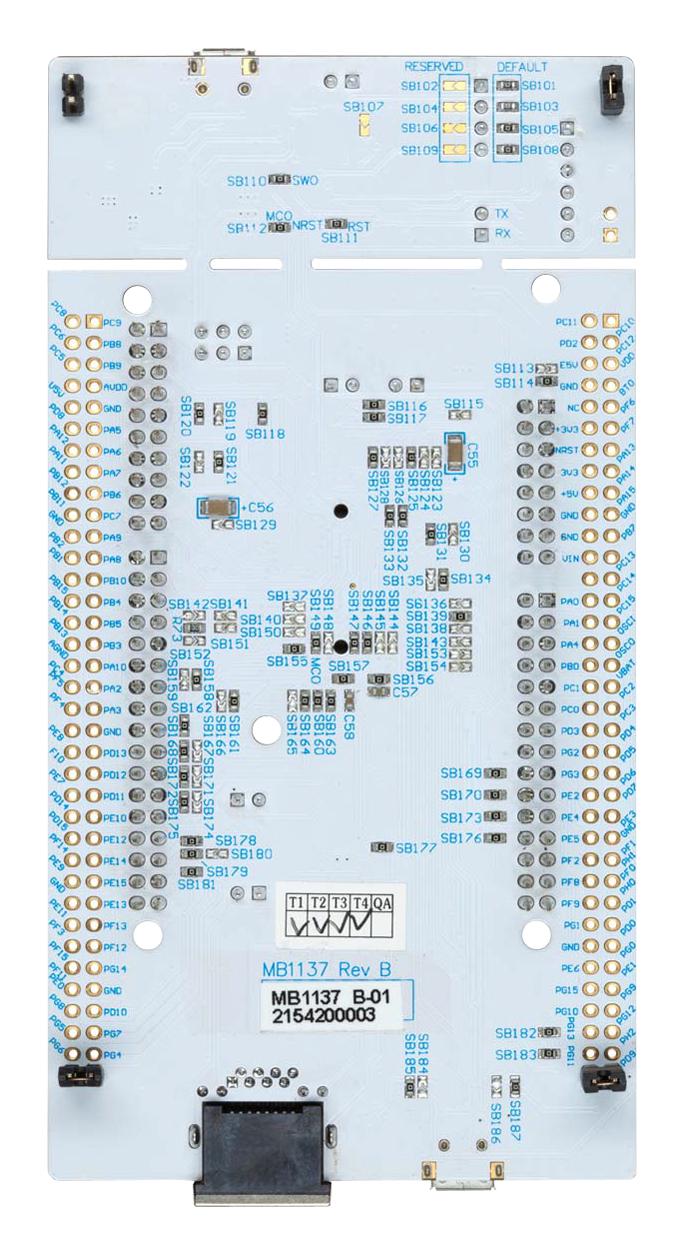

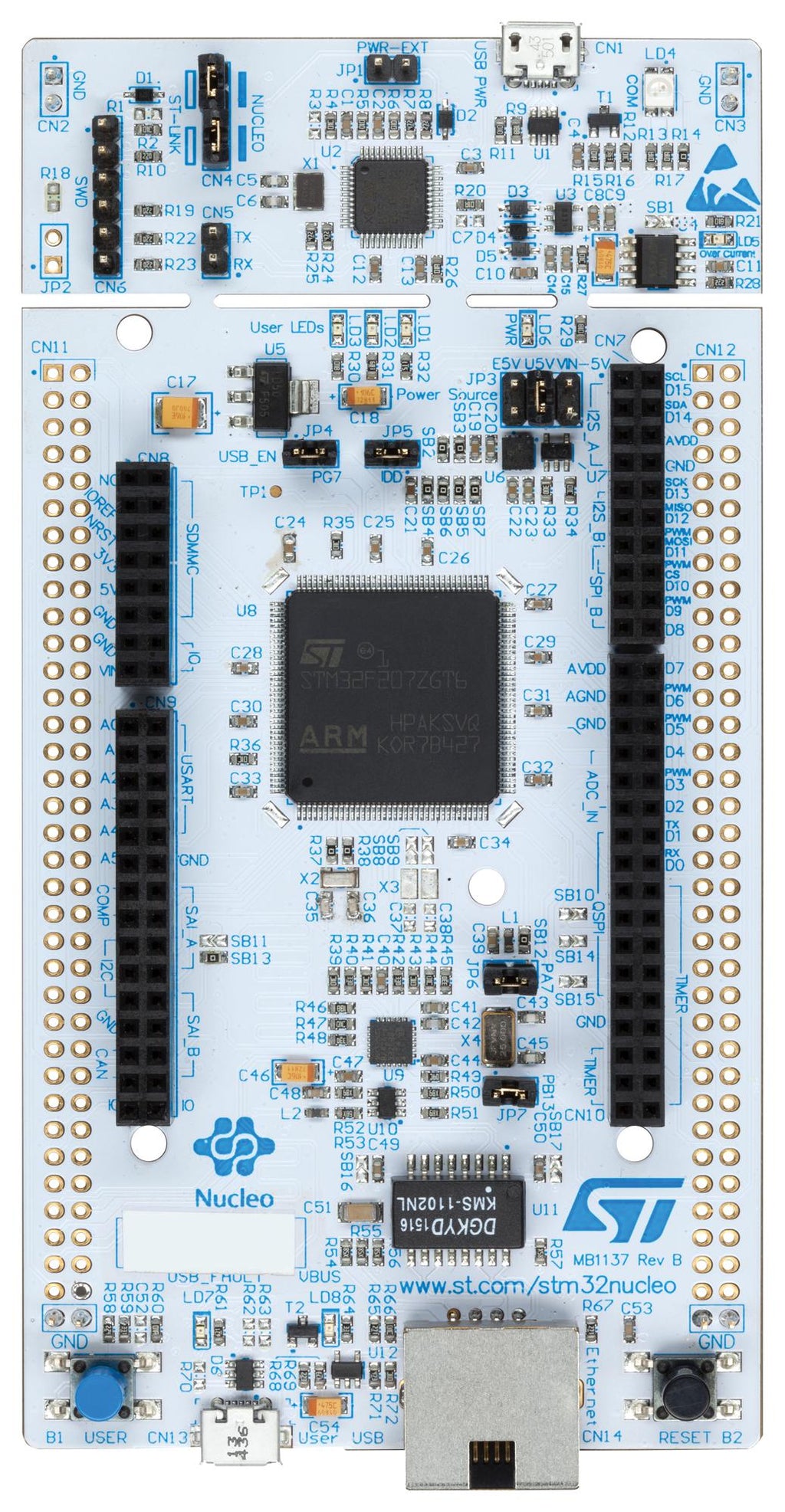

STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller.
- Flexible power-supply options: ST-LINK, USB VBUS or external sources
- On-board ST-LINK debugger/programmer with USB re-enumeration capability
- Support of a wide choice of IDEs including IAR�, Keil® and STM32CubeIDE
- External or internal SMPS to generate Vcore logic supply
- Ethernet compliant with IEEE-802.3-2002
- Arm® Mbed Enabled�, Ethernet, USB OTG FS on Micro�AB connector and ST-LINK/V2-1
- STM32 microcontroller in LQFP144 package
- 3 user LEDs, 2 user, reset push-buttons, 32.768KHz crystal oscillator
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Silicon Manufacturer |
STMicroelectronics |
| No. of Bits |
32bit |
| Silicon Family Name |
STM32F2 |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-M3 |
| Silicon Core Number |
STM32F207ZG |
| Kit Contents |
Dev Board STM32F207ZG |
| Product Range |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
NUCLEO-F207ZG |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Operating Instructions EN |
|
| User Manual EN |
|
| Product Change Notice EN |
|
