M95P32-IXMNT/E is a ultra low-power 32Mbit serial SPI page EEPROM with dual and quad outputs. This is manufactured with ST's advanced proprietary NVM technology. This offers byte flexibility, page alterability, high page cycling performance, and ultra-low power consumption, equivalent to that of EEPROM technology. It is a 32Mbit SPI page EEPROM device organized as 8192 programmable pages of 512bytes each, accessed through an SPI bus with high-performance dual- and quad-SPI outputs. The device offers two additional (identification) pages of 512bytes. The first contains identification data and, upon request, the UID. The second can be used to store sensitive application parameters, which can (later) be permanently locked in read-only mode. The device also accept page/block/sector/chip erase commands in order to set the memory to an erased state.

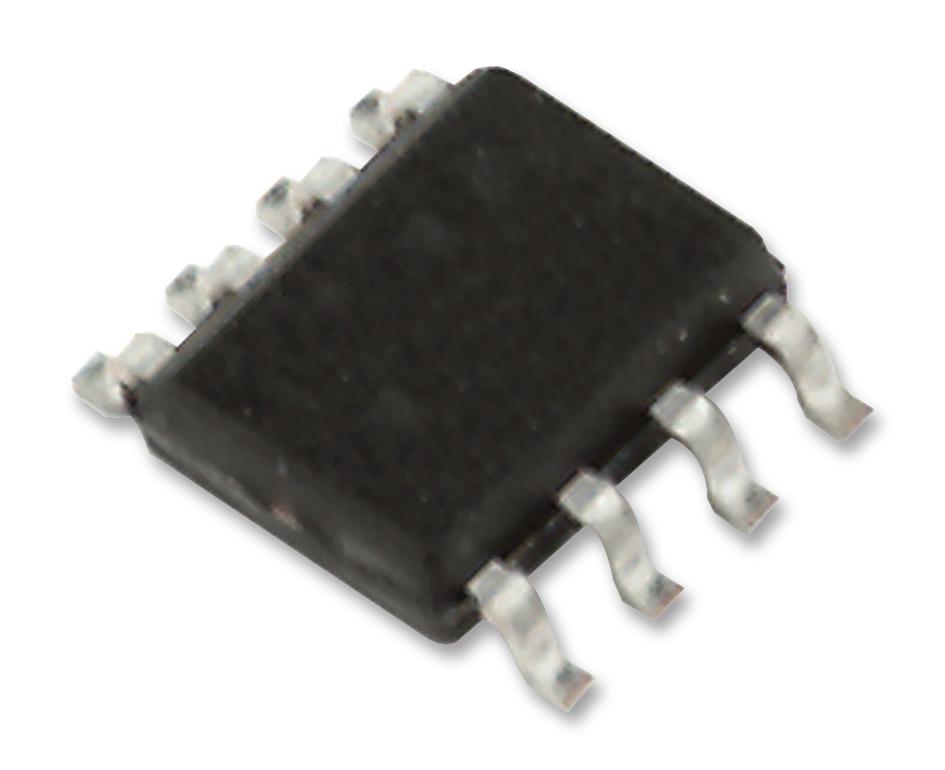

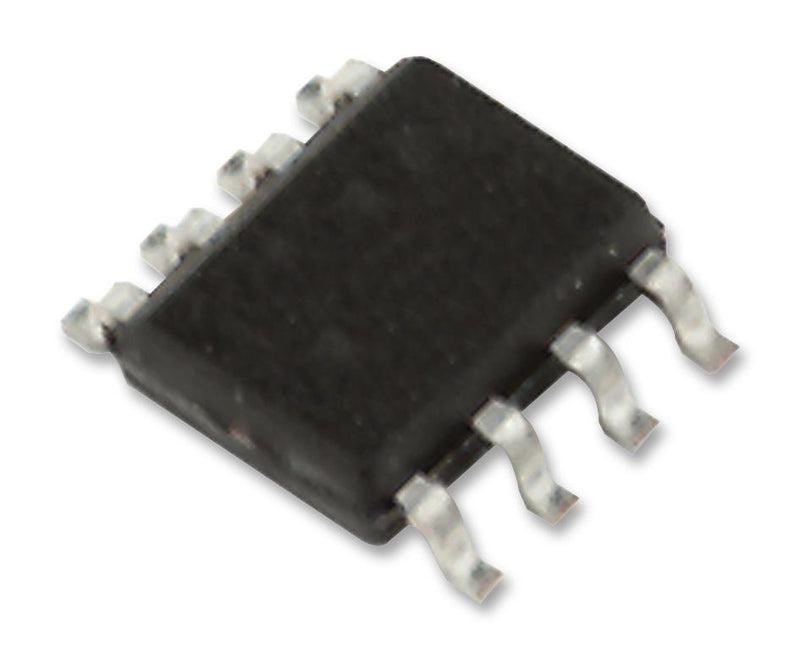

- SO8N (150 mil width) package, manufacturing technology code process
- Supports serial peripheral interface and dual/quad outputs
- Wide voltage range - VCC from 1.6 to 3.6V, 50MHz read single output
- 80MHz fast read single/dual/quad output with one dummy byte
- 100 kcycles on full temperature range, 100 years, 10 years after 500 kcycles
- Page program with buffer load, schmitt trigger inputs for noise filtering
- Output buffer programmable strength, operating status flags for ISO26262
- Software reset, unique ID upon request, industrial temperature range from -40 to 85°C
- Electronic identification, JEDEC standard manufacturer identification
- Support of serial flash memory discoverable parameters mode
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
M95P32-IXMNT/E |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
