| ₹ 308.57 includes GST and import duties. | |
| B2B customers can avail ₹ 47.06 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The M24LR64E-RMN6T/2 is a dynamic NFC/RFID Tag IC with a dual-interface and 64kb electrically erasable programmable memory (EEPROM). It features an I²C interface and can be operated from a VCC power supply. It is also a contactless memory powered by the received carrier electromagnetic wave. The IC is organized as 8192 x 8-bit in the I²C mode and as 2048 x 32-bit in the ISO 15693 and ISO 18000-3 mode 1 RF mode. It also features an energy harvesting analogue output, as well as a user configurable digital output pin toggling during either RF write in progress or RF busy mode. The device behaves as a slave in the I²C protocol, with all memory operations synchronized by the serial clock. Read and write operations are initiated by a Start condition, generated by the bus master.
- Random and sequential read modes
- Self-timed programming cycle
- Automatic address incrementing
- Enhanced ESD/latch-up protection
- User configurable pin - RF write in progress or RF busy mode
- Analogue pin for energy harvesting
- 4 Sink current configurable ranges
- More than 1 million write cycles
- More than 40-year data retention
- Multiple password protection in RF mode
- Single password protection in I²C mode
Applications
Computers & Computer Peripherals, RF Communications
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Clock Frequency | 400kHz |
| No. of Pins | 8Pins |
| Memory Size | 64Kbit |
| Product Range | 64Kbit Serial I2C EEPROMs |
| Memory Case Style | SOIC |
| Supply Voltage Min | 1.8V |
| IC Interface Type | Serial I2C |
| EEPROM Memory Configuration | 8K x 8bit |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | M24LR64E-RMN6T/2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

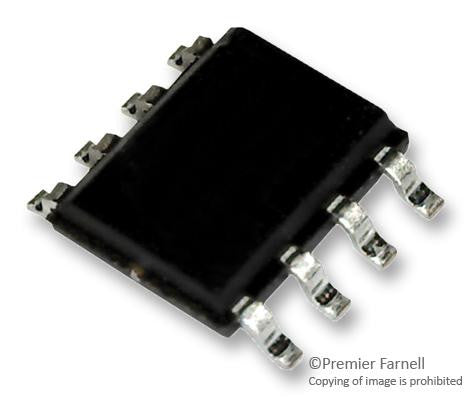

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 302.4 |
| 3-5 | ₹ 299.31 |
| 5-10 | ₹ 293.14 |
| 10+ | ₹ 286.97 |
Bulk discount will be automatically applied during checkout based on quantity.
