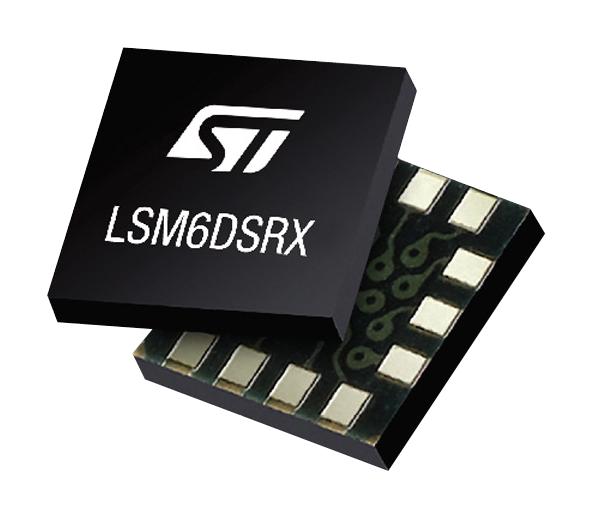

- iNEMO inertial module with embedded machine learning core
- Extended full-scale range for gyroscope up to 4000dps
- High stability over temperature and time
- Smart FIFO up to 9KB, Android compliant
- Auxiliary SPI for OIS data output for gyroscope and accelerometer
- ±2/±4/±8/±16g full scale, ±125/±250/±500/±1000/±2000/±4000dps full scale
- SPI/I²C & MIPI I3CSM serial interface with main processor data synchronization
- Supports sensor synchronization S4S for Qualcomm, full spec compliant (I²C, MIPI I3CSM, SPI)
- Advanced pedometer, step detector and step counter, significant motion detection and tilt detection
- Programmable finite state machine to process data from accelerometer, gyroscope and external sensors
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
LSM6DSRXTR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
