| ₹ 51.41 includes GST and import duties. | |
| B2B customers can avail ₹ 7.84 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview
LM2901YQ5T is a low-power quad voltage comparator. This device consists of four independent precision voltage comparators, which are designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. These comparators also have a unique characteristic in that the input common-mode voltage range includes the negative rail even though operated from a single power supply voltage.
- Input common-mode voltage range includes negative rail
- Differential input voltage range equal to the supply voltage
- TTL, DTL, ECL, MOS, CMOS compatible outputs
- Low input bias current is 25nA typical (Tmin ? Tamb ? Tmax)
- Input offset voltage is 1mV typical at (Tmin ? Tamb ? Tmax)
- Input offset current is 5nA typical at (Tmin ? Tamb ? Tmax)
- Supply current (all comparators) is 1.1mA typical at (VCC+ = 5V, no load)
- Small signal response time is 1.3µs typical at (Vcc = 5V, RL = 5.1Kohm to Vcc)
- Operating temperature range from -40°C to +125°C

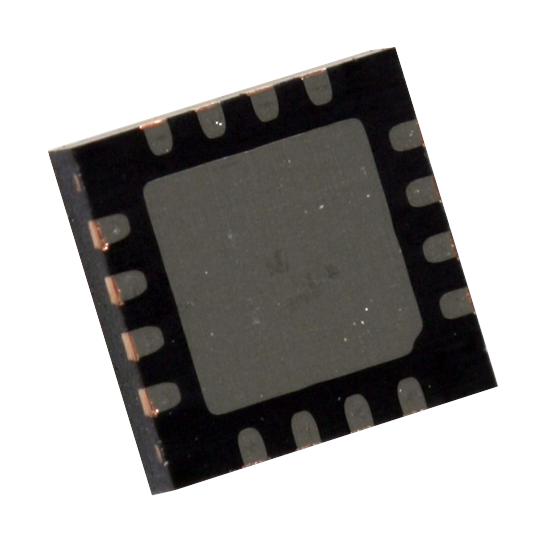

- QFN16 package, automotive grade
Product details
Other details
| Brand | STMICROELECTRONICS |
| Part Number | LM2901YQ5T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 50.38 |
| 3-5 | ₹ 49.87 |
| 5-10 | ₹ 48.84 |
| 10+ | ₹ 47.81 |
Bulk discount will be automatically applied during checkout based on quantity.
