| ₹ 338.37 includes GST and import duties. | |
| B2B customers can avail ₹ 51.6 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

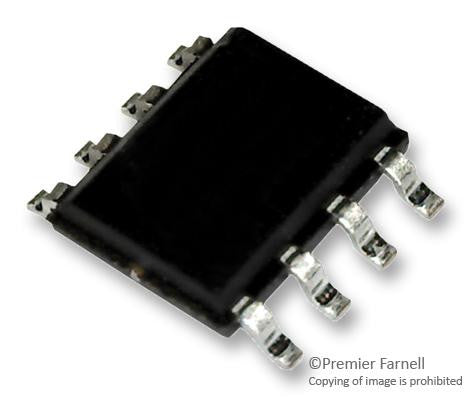

The LM234DT is a 3-terminal adjustable Current Source IC characterized by an operating current range of 10000, 1 an excellent current regulation a wide dynamic voltage range of 1 to 10V. The current is determined by an external resistor without requiring other external components. Reverse voltages of up to 20V will only draw a current of several microamperes. This enables the circuit to operate as a rectifier and as a source of current in AC applications. The simplest external resistor connection generates a current with approximately 0.33%/°C temperature dependence. Zero drift can be obtained by adding an additional resistor and a diode to the external circuit.
- Operates from 1 to 40V
- 0.02%/V Current regulation
- 1µA to 10mA Programmable
- ±3% Initial accuracy
Applications
Sensing & Instrumentation
Product details
| Sensing Accuracy Range | ± 3% |
| Sensor Case Style | SOIC |
| No. of Pins | 8Pins |
| Sensing Temperature Max | 100°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| Sensing Temperature Min | -25°C |
| IC Output Type | Current |
| Supply Voltage Min | 1V |
| Packaging | Cut Tape |
| Supply Voltage Max | 40V |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | LM234DT |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 331.6 |
| 3-5 | ₹ 328.22 |
| 5-10 | ₹ 321.45 |
| 10+ | ₹ 314.68 |
Bulk discount will be automatically applied during checkout based on quantity.
