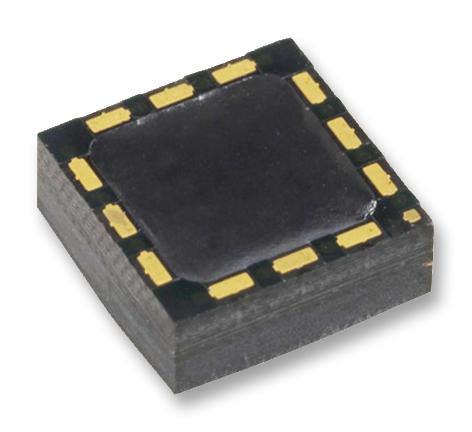

LIS2HH12TR is an ultra-low-power high-performance three-axis linear accelerometer belonging to the "pico" family. The LIS2HH12 has full scales of ±2g/±4g/±8g and is capable of measuring accelerations with output data rates from 10Hz to 800Hz. The self-test capability allows the user to check the functioning of the sensor in the final application. The LIS2HH12 has an integrated first-in, first-out (FIFO) buffer allowing the user to store data in order to limit intervention by the host processor. The LIS2HH12 is available in a small thin plastic and grid array package (LGA) and it is guaranteed to operate over an extended temperature range from -40°C to +85°C.
- Wide supply voltage range from 1.71V to 3.6V
- Independent IOs supply (1.8 V) and supply voltage compatible
- I2C/SPI digital output interface
- 16-bit data output
- Embedded temperature sensor, embedded self-test and embedded FIFO
- 10000g high shock survivability
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
LIS2HH12TR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
