The LED2000PUR is a 3A monolithic step-down Current Source with synchronous rectification. The 850kHz fixed switching frequency monolithic step-down DC-DC converter designed to operate as precise constant current source with an adjustable current capability up to 3A DC. The embedded PWM dimming circuitry features LED brightness control. The regulated output current is set connecting a sensing resistor to the feedback pin. The embedded synchronous rectification and the 100mV typical RSENSE voltage drop enhance the efficiency performance. The size of the overall application is minimized thanks to the high switching frequency and ceramic output capacitor compatibility. The device is fully protected against thermal overheating, overcurrent and output short-circuit.
- PWM dimming
- Synchronous rectification
- Peak current mode architecture
- Embedded compensation network
- Internal current limiting
- Ceramic output capacitor compliant
- Thermal shutdown
- 100mV Typical current sense voltage drop
- ±7% Output current accuracy
- 95mR HS/69mR LS typical RDS(on)
- 2W Power dissipation at TA < 60°C
Applications
LED Lighting, Lighting
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Device Topology |
Buck (Step Down) |
| Input Voltage Min |
3V |
| Input Voltage Max |
18V |
| Output Voltage Max |
- |
| Output Current Max |
3A |
| Switching Frequency |
850kHz |
| No. of Outputs |
1Outputs |
| IC Mounting |
Surface Mount |
| Driver Case Style |
VFQFPN |
| No. of Pins |
8Pins |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
| MSL |
MSL 1 - Unlimited |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
LED2000PUR |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD CadSoft_EAGLE EN |
|
| Product Change Notice EN |
|

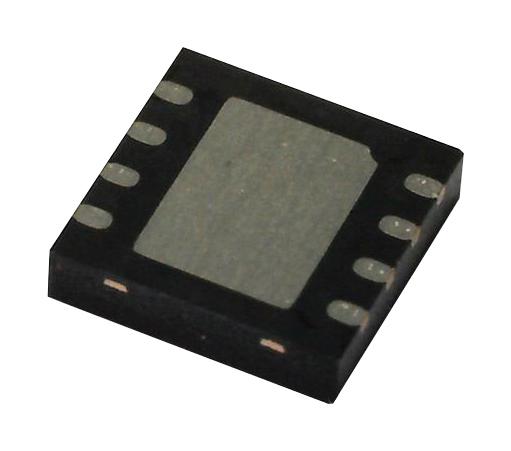

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
