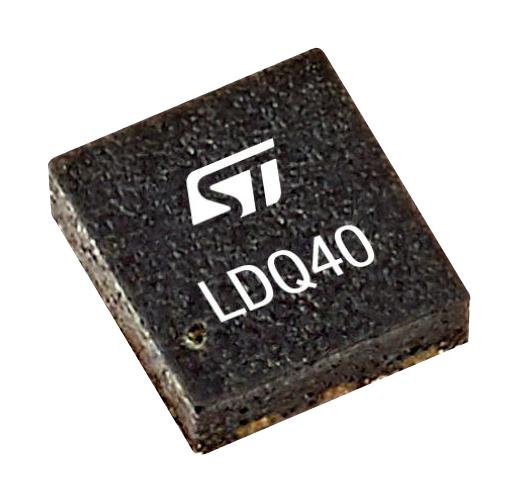

STMICROELECTRONICS LDQ40PURY LDO Voltage Regulator, Adjustable, 3.3 to 40V in, 1.2 to 12V/250mA out, -40°C to 150°C

LDQ40PURY is a 250mA low-dropout LDO. It is a high-accuracy voltage regulator, which provides 250mA of current. This device is stabilized with a small ceramic capacitor on the output. The low drop, low quiescent current, and short-circuit protection make the device suitable for low-power battery-operated applications. An enable logic control function puts the device in shutdown mode allowing a total current consumption lower than 0.3µA. Thermal protection is also included. It is also used in applications such as EV power trains, always-on battery-connected applications, infotainment and instrument clusters, and ADAS.

• Input voltage range from 3.3V to 40V, ADJ Vout from 1.2V to 12V
• AEC-Q100 grade 1 qualified, power good for fixed versions, logic-controlled electronic shutdown
• Internal current limit, thermal shutdown, output active discharge function
• Dropout voltage is 500mV typical at (IOUT = 250mA)
• Output voltage accuracy is 2% max at (VOUT(NOM) + 1 V ? VIN ? 18V, IOUT = 1mA to 250mA)
• Quiescent current during regulation is 2µA typical at (VIN from 2.5V to 40V no load)
• Turn on time is 500µs typical at From assertion of VEN to VOUT = 98% VOUT(NOM).VOUT(NOM) = 1V
• Output noise voltage is 50µVRMS typical at (VIN = VOUT(NOM) + 1V; VOUT(NOM) = 1.2V)
• Standby current is 1µA maximum at (VIN = 14V)
• Operating temperature range from -40°C to 150°C, DFN6 package
