Description

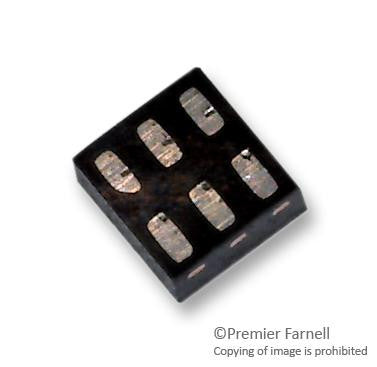

This is a Fixed LDO Voltage Regulator, 1.9V to 5.5V, 200mV Dropout, 1.8Vout, 300mAout, DFN-6 product from STMICROELECTRONICS with the model number LDK130PU18R
Product details
| Output Type | Fixed |
| Input Voltage Min | 1.9V |
| Input Voltage Max | 5.5V |
| Fixed Output Voltage Nom. | 1.8V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 300mA |
| Dropout Voltage Vdo | 200mV |
| LDO Regulator Case Style | DFN |
| No. of Pins | 6Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Packaging | Cut Tape |
| Product Range | 1.8V 300mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | LDK130PU18R |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
