Description

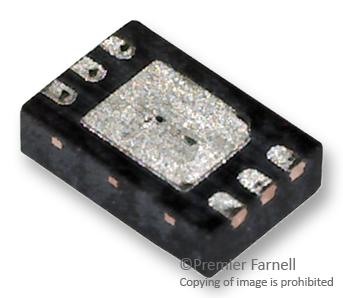

This is a Fixed LDO Voltage Regulator, 2.5V to 16V, 125mV drop, 3.3V/500mA out, DFN-EP-6 product from STMICROELECTRONICS with the model number LDFM33PVR
Product details
| Output Type | Fixed |
| Input Voltage Min | 2.5V |
| Input Voltage Max | 16V |
| Fixed Output Voltage Nom. | 3.3V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 500mA |
| Dropout Voltage Vdo | 125mV |
| LDO Regulator Case Style | DFN-EP |
| No. of Pins | 6Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Product Range | 3.3V 500mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | LDFM33PVR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
