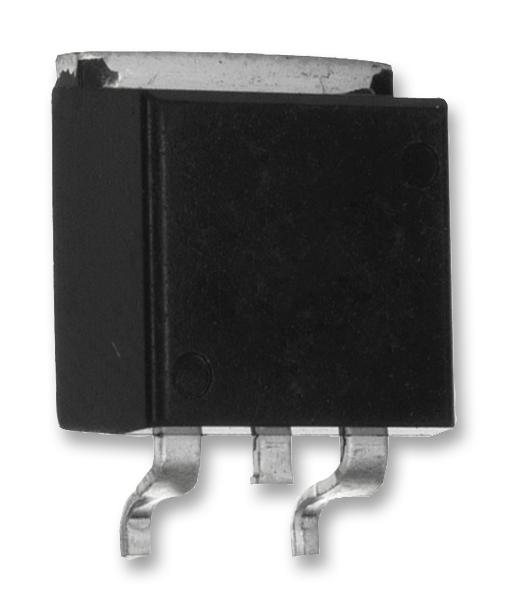

Stmicroelectronics LD1086D2M33TR Fixed LDO Voltage Regulator 6.3V to 30V 1.3V Dropout 3.3Vout 1.5Aout TO-263-3

The LD1086D2M33TR is an adjustable and fixed low drop Positive Voltage Regulator capable of providing up to 1.5A of output current. Dropout is guaranteed at a maximum of 1.2V at the maximum output current, decreasing at lower loads. This is pin-to-pin compatible with the older 3-terminal adjustable regulator, but has offers better performance in terms of drop and output tolerance. Unlike PNP regulator, where a part of the output current is wasted as quiescent current, the quiescent current flows into the load and increases efficiency. Only a 10µF minimum capacitor is need for stability.

• Output tolerance of ±1% at 25°C and ±2% in full temperature range
• Internal power and thermal limit
• Pinout compatibility with standard adjustable voltage regulators

Applications

Power Management

Other details
