Description
The L7905CD2T-TR is a 3-terminal Negative Voltage Regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation furthermore, having the same voltage option as the L78 positive standard series, it is particularly suited for split power supplies. If adequate heat sinking is provided, it can deliver over 1.5A output current. Although designed primarily as fixed voltage regulators, this device can be used with external components to obtain adjustable voltages and currents.
- Thermal overload protection
- Short-circuit protection
- Output transition SOA protection
- Output tolerance of 4% at 25�C
Applications
Power Management
Product details
| Input Voltage Max | -10V |
| Fixed Output Voltage Nom. | -5V |
| Operating Temperature Min | 0�C |
| Output Current | 1.5A |
| Adjustable Output Voltage Max | - |
| Operating Temperature Max | 150�C |
| No. of Pins | 3Pins |
| Adjustable Output Voltage Min | - |
| Output Type | Fixed |
| Input Voltage Min | -35V |
| Product Range | -5V 1.5A LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| LDO Regulator Case Style | TO-263 |
| Packaging | Cut Tape |
| Dropout Voltage Vdo | 1.4V |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | L7905CD2T-TR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

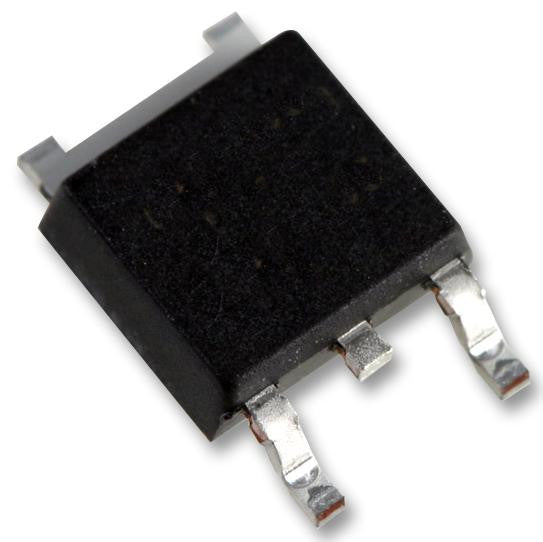

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
