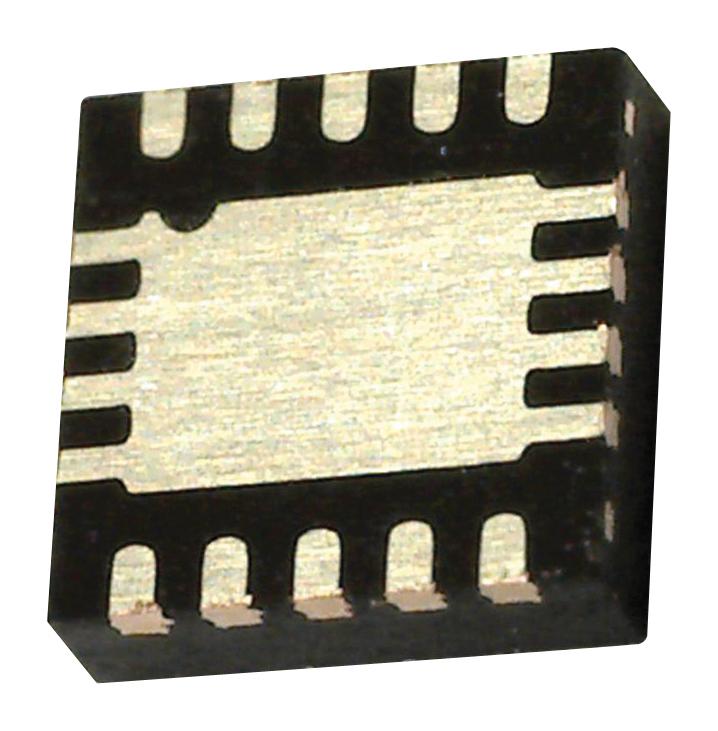

Stmicroelectronics L6984TR L6984TR DC-DC Switching Buck Step Down Regulator Adjustable 4.5V-36Vin 900mV-28Vout 0.4Aout VFDFN-10

The L6984TR is a step-down monolithic Switching Regulator able to deliver up to 400mA DC. The output voltage adjustability ranges from 0.9V. The fixed 3.3V VOUT requires no external resistor divider. The low consumption mode (LCM) is designed for applications active during car parking, so it maximizes the efficiency at light load with controlled output voltage ripple. The low noise mode (LNM) makes the switching frequency almost constant over the load current range, serving low noise application specification like car audio. The PGOOD open collector output can implement output voltage sequencing during the power-up phase. The synchronous rectification, designed for high efficiency at medium - heavy load and the high switching frequency capability make the size of the application compact. Pulse-by-pulse current sensing on low-side power element implements an effective constant current protection.

• Synchronous rectification
• Low consumption mode or low noise mode
• VBIAS maximizes efficiency at light load
• Constant on-time control scheme
• PGOOD open collector
• Thermal shutdown
• No resistor divider required for 3.3V VOUT
• 350mA Valley current limit
• 100µA Quiescent current at light load (LCM VOUT=3.3V)
• 13µA Quiescent current in shutdown operation

Applications

Automotive, Power Management, Sensing & Instrumentation, Metering
