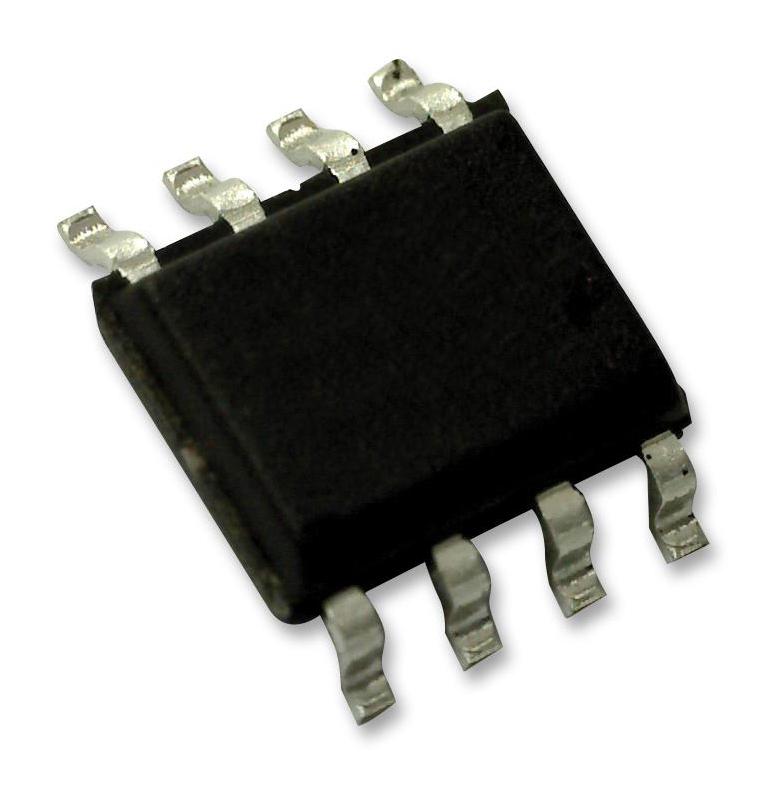

Stmicroelectronics L6902D013TR L6902D013TR DC-DC Switching Buck (Step Down) Regulator Adjustable 8V-36Vin 1.235V-34Vout 1Aout SOIC-8

The L6902D013TR is a complete and simple step-down Switching Regulator with adjustable current limit. Based on a voltage-mode structure it integrates a current error amplifier to have a constant voltage and constant current control. By means of an on board current sense resistor and the availability of the current sense pins (both compatible to Vcc and for Cs- compatible with GND too) a current limit programming is very simple and accurate (±5%). Moreover constant current control can be used to charge NiMH and NiCd batteries. The device can be used as a standard DC/DC converter with adjustable current limit (set by using the external sense resistor). The internal robust P-channel DMOS transistor with a typical of 250mR assures high efficiency and a minimum dropout even at high output current level. The internal limiting current (latched function) of typical value of 2.5A protects the device from accidental output short-circuit avoiding dangerous loads damage.

• Voltage feed-forward
• Zero load current operation
• Adjustable current limit
• Protection against feedback disconnection
• Thermal shutdown
• Overvoltage and frequency foldback overcurrent protection
• Precise 3.3V (±2%) reference voltage
• 5% Output current accuracy

Applications

Power Management, Computers & Computer Peripherals

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	STMICROELECTRONICS
Part Number	L6902D013TR
Quantity	Each (Supplied on Cut Tape)
