Description
The L6561D is a transition mode Power Factor Corrector. It is fully compatible with the standard version, it has a superior performant multiplier making the device capable of working in wide input voltage range applications with an excellent THD. Furthermore the start up current has been reduced at few tens of mA and a disable function has been implemented on the ZCD pin, guaranteeing lower current consumption in standby mode. Realized in mixed BCD technology, the chip gives the benefits micro power start up current 1% precision internal reference voltage soft output over voltage protection, no need for external low pass filter on the current sense very low operating quiescent current minimizes power dissipation. The totem pole output stage is capable of driving a Power MOS or IGBT with source and sink currents of ±400mA.
- Very precise adjustable output over-voltage protection
- Very low operating supply current (4mA typical)
- Internal start-up timer
- Current sense filter on chip
- Disable function
- Transition mode operation
Applications
Power Management
Product details
| Output Current | 400mA |
| DC / DC Converter IC Case | SOIC |
| No. of Outputs | 1Outputs |
| Automotive Qualification Standard | - |
| Input Voltage Max | 18V |
| Packaging | Cut Tape |
| Product Range | - |
| Operating Temperature Max | 150°C |
| No. of Pins | 8Pins |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | L6561D |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

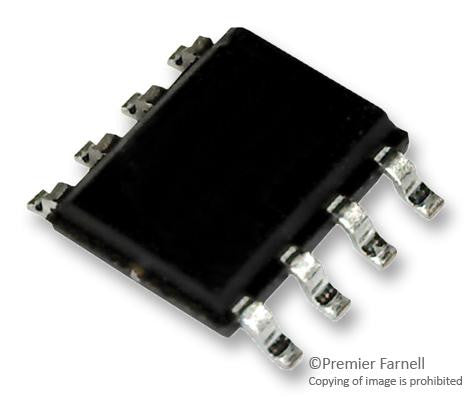

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 116.64 |
| 3-5 | ₹ 115.45 |
| 5-10 | ₹ 113.07 |
| 10+ | ₹ 110.69 |
Bulk discount will be automatically applied during checkout based on quantity.
