Description

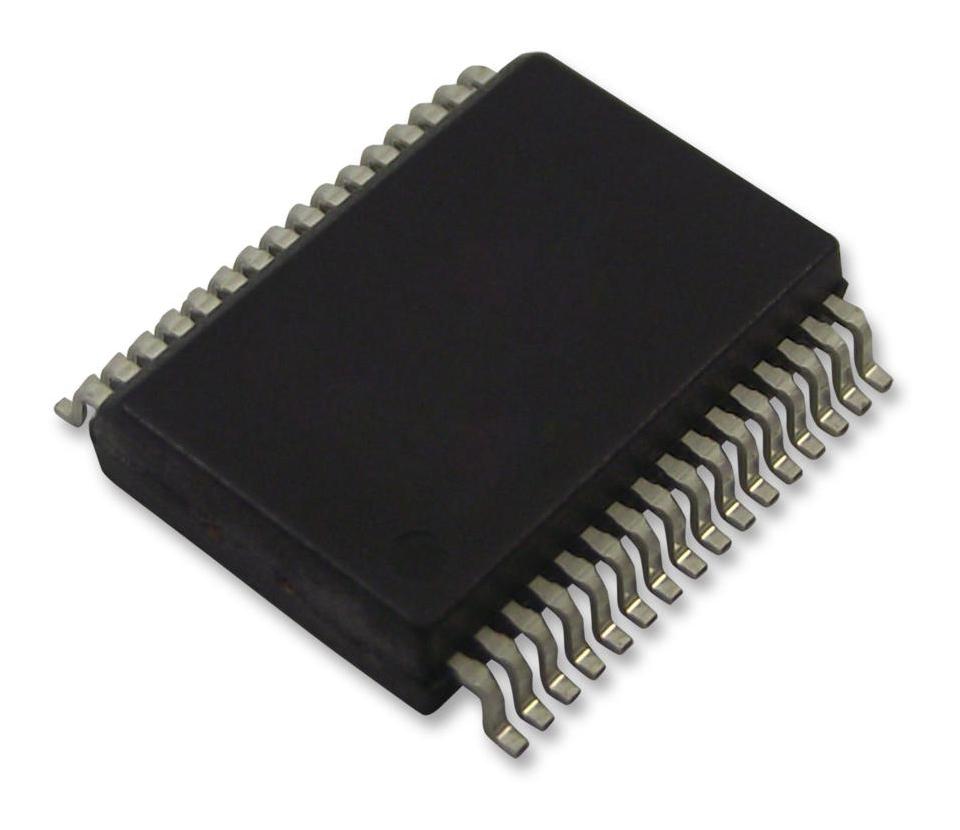

The L6470PD is a fully integrated micro-stepping Motor Driver with motion engine and SPI. It is realized in analogue mixed signal technology, is an advanced fully integrated solution suitable for driving 2-phase bi-polar stepper motors with micro-stepping. It integrates a dual low RDS(ON)DMOS full bridge with all of the power switches equipped with an accurate on-chip current sensing circuitry suitable for non-dissipative current control and over-current protection. The digital control core can generate user defined motion profiles with acceleration, deceleration, speed or target position and easily programmed through a dedicated registers set. All commands and data registers, including those used to set analogue values are sent through a standard 5Mbit/s SPI.
- Low RDS(ON)Power MOSFETs
- Programmable speed profile and positioning
- Programmable power MOS slew rate
- Up to 1/128 micro-stepping
- Sensorless stall detection
- SPI interface
- Low quiescent and standby currents
- Programmable non-dissipative over-current protection on high and low-side
- 2-level of over-temperature protection
Applications
Motor Drive & Control
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Motor Type: Stepper |
| No. of Outputs: 2Outputs |
| Output Current: 3A |
| Output Voltage: 45V |
| Driver Case Style: SOIC |
| No. of Pins: 36Pins |
| Supply Voltage Min: 3.3V |
| Supply Voltage Max: 5V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 150°C |
| Product Range: - |
| Automotive Qualification Standard: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | L6470PD |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1281.23 |
| 3-5 | ₹ 1268.16 |
| 5-10 | ₹ 1242.01 |
| 10+ | ₹ 1215.86 |
Bulk discount will be automatically applied during checkout based on quantity.
