| ₹ 983.69 includes GST and import duties. | |
| B2B customers can avail ₹ 150.01 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

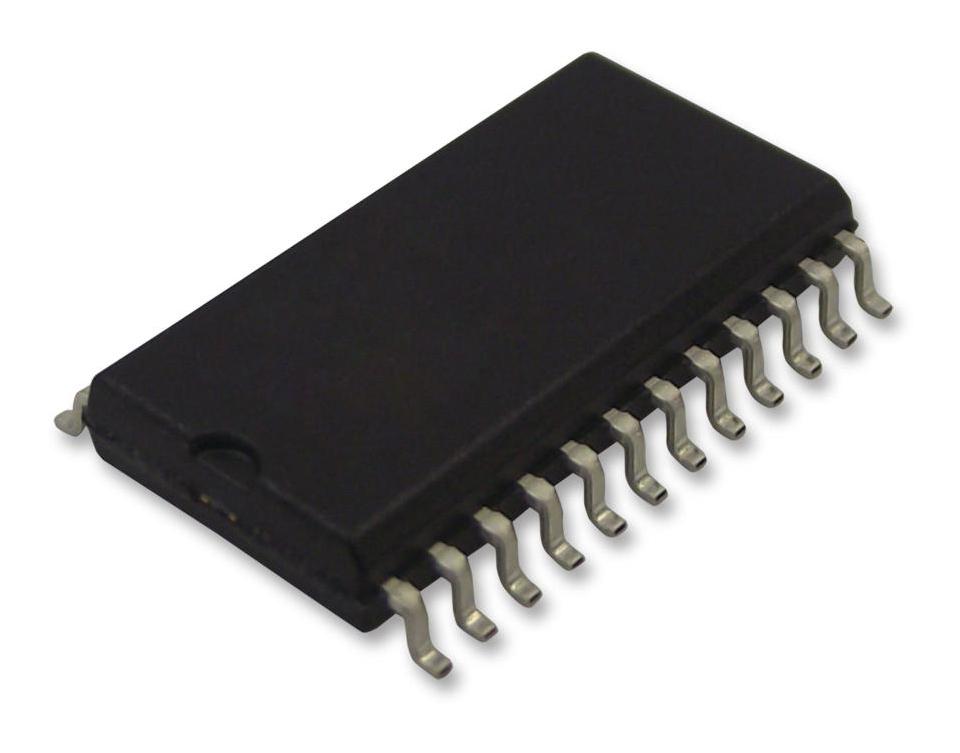

The L6228D is a DMOS fully integrated Stepper Motor Driver with non-dissipative overcurrent protection, realized in BCD technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. The device includes all the circuitry needed to drive a two-phase bipolar stepper motor including a dual DMOS full bridge, the constant off time PWM current controller that performs the chopping regulation and the phase sequence generator, that generates the stepping sequence. It features a non-dissipative overcurrent protection on the high-side power MOSFETs and thermal shutdown.
- Dual independent constant tOFF PWM current controllers
- Fast decay quasi-synchronous rectification
- Decoding logic for stepper motor full and half step drive
- Cross conduction protection
- Under-voltage lockout
- Integrated fast free-wheeling diodes
- 0.73R at Tj=25°C Typical RDS(ON)
- Up to 100kHz operating frequency
Motor Drive & Control
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | STMICROELECTRONICS |
| Part Number | L6228D |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 964.02 |
| 3-5 | ₹ 954.18 |
| 5-10 | ₹ 934.51 |
| 10+ | ₹ 914.83 |
Bulk discount will be automatically applied during checkout based on quantity.
