| ₹ 719.88 includes GST and import duties. | |
| B2B customers can avail ₹ 109.78 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The L6227Q is a dual DMOS full-bridge Driver with PWM current controller. It is realized in BCD technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. The device also includes two independent constant off time PWM current controllers that performs the chopping regulation. It features a non-dissipative overcurrent protection on the high-side power MOSFETs and thermal shutdown.
- Non-dissipative overcurrent protection
- Dual independent constant tOFF PWM current controllers
- Slow decay synchronous rectification
- Cross conduction protection
- Thermal shutdown
- Under-voltage lockout
- Integrated fast free-wheeling diodes
- 2.8A Output peak current (1.4A DC)
- 0.73R at Tj=25°C Typical RDS(ON)
- Up to 100kHz operating frequency
Applications
Motor Drive & Control
Product details
| Motor Type | Full Bridge |
| Operating Temperature Min | -25°C |
| Output Current | 1.4A |
| No. of Outputs | 2Outputs |
| Driver Case Style | VFQFPN |
| Operating Temperature Max | 125°C |
| No. of Pins | 32Pins |
| Output Voltage | 52V |
| Product Range | - |
| Automotive Qualification Standard | - |
| Supply Voltage Min | 8V |
| Packaging | Each |
| Supply Voltage Max | 52V |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | L6227Q |
| Quantity | Each |
| Technical Data Sheet EN |  |

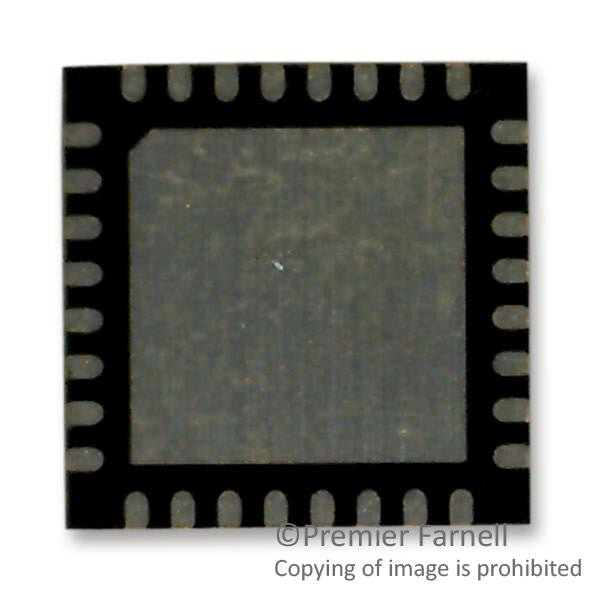

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 705.48 |
| 3-5 | ₹ 698.28 |
| 5-10 | ₹ 683.89 |
| 10+ | ₹ 669.49 |
Bulk discount will be automatically applied during checkout based on quantity.
