| ₹ 2130.04 includes GST and import duties. | |
| B2B customers can avail ₹ 324.83 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

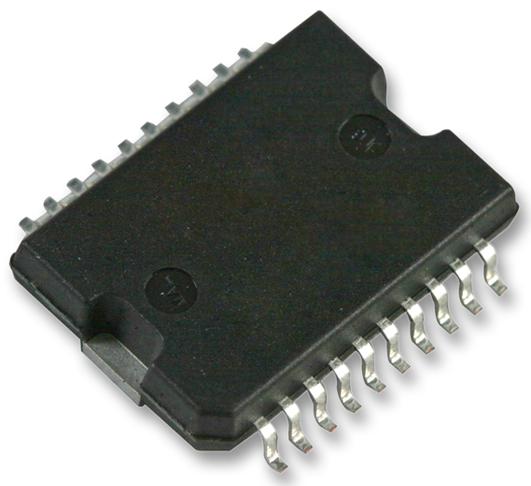

The L6225PD is a dual DMOS full-bridge Driver realized in MultiPowerBCD technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. It features a non-dissipative protection of the high-side PowerMOSFETs and thermal shutdown.
- Non-dissipative overcurrent protection
- Paralleled operation
- Cross conduction protection
- Thermal shutdown
- Under-voltage lockout
- Integrated fast free-wheeling diodes
- 2.8A Output peak current (1.4A DC)
- 0.73R at Tj=25°C Typical RDS(ON)
- Up to 100kHz operating frequency
Motor Drive & Control
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | STMICROELECTRONICS |
| Part Number | L6225PD |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD CadSoft_EAGLE EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2087.44 |
| 3-5 | ₹ 2066.14 |
| 5-10 | ₹ 2023.54 |
| 10+ | ₹ 1980.94 |
Bulk discount will be automatically applied during checkout based on quantity.
