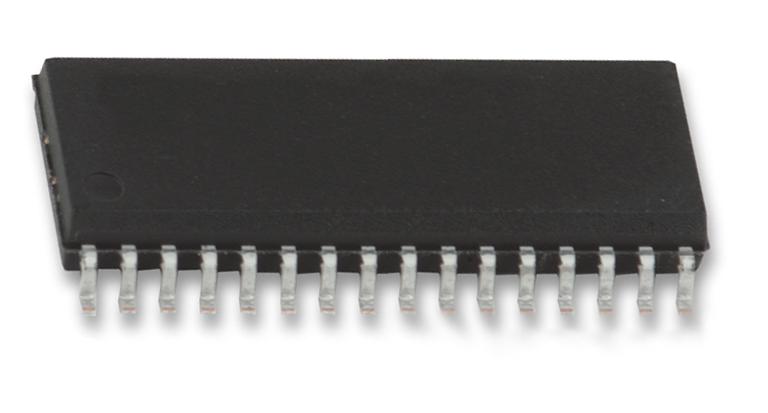

Stmicroelectronics L6208PD L6208PD Motor Driver/Controller Stepper 8V to 52V Supply 52V/7.1 A/4 Outputs SOIC-36

The L6208PD is a DMOS fully integrated Stepper Motor Driver with non-dissipative over-current protection, realized in BCD technology, which combines isolated DMOS power transistors with CMOS and bi-polar circuits on the same chip. The device includes all the circuitry needed to drive a 2-phase bi-polar stepper motor including a dual DMOS full bridge, the constant off time PWM current controller that performs the chopping regulation and the phase sequence generator that generates the stepping sequence. This device features a non-dissipative over-current protection on the high-side power MOSFETs and thermal shutdown.

• Non-dissipative over-current protection
• Dual independent constant tOFF PWM current controllers
• Fast/slow decay mode selection
• Fast decay quasi-synchronous rectification
• Decoding logic for stepper motor full and half step drive
• Cross conduction protection
• Thermal shutdown
• Under-voltage lockout
• Integrated fast freewheeling diodes
