Description

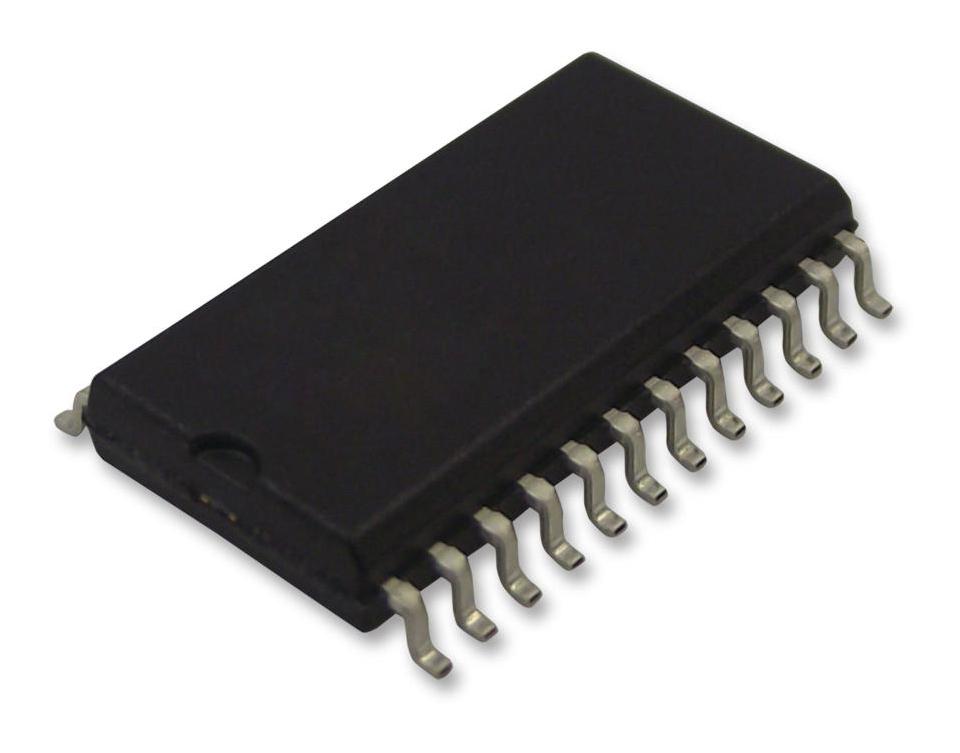

The L6206D is a dual DMOS full-bridge Driver realized in BCD technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. It features thermal shutdown and a non-dissipative overcurrent detection on the high-side power MOSFETs plus a diagnostic output that can be easily used to implement the overcurrent protection.
- Programmable high-side overcurrent detection and protection
- Diagnostic output
- Paralleled operation
- Cross conduction protection
- Thermal shutdown
- Under-voltage lockout
- Integrated fast free-wheeling diodes
- 5.6A Output peak current (2.8A DC)
- 0.3R at Tj=25°C Typical RDS(ON)
- Up to 100kHz operating frequency
Applications
Motor Drive & Control
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Motor Type: Full Bridge |
| No. of Outputs: 4Outputs |
| Output Current: 2.8A |
| Output Voltage: - |
| Driver Case Style: SOIC |
| No. of Pins: 24Pins |
| Supply Voltage Min: 8V |
| Supply Voltage Max: 52V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 150°C |
| Product Range: - |
| Automotive Qualification Standard: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | L6206D |
| Quantity | Each |
| Technical Data Sheet EN |  |
