Description
The L6205D is a DMOS dual Full-bridge Driver for motor control applications, realized in MultiPower-BCD technology, which combines isolated DMOS power transistors with CMOS and bi-polar circuits on the same chip.
- Non dissipative over-current protection
- Paralleled operation
- Cross conduction protection
- Thermal shutdown
- Under-voltage lockout
- Integrated fast free wheeling diodes
Applications
Motor Drive & Control
Product details
| Motor Type | Full Bridge |
| Operating Temperature Min | -25°C |
| Output Current | 2.8A |
| No. of Outputs | 2Outputs |
| Driver Case Style | SOIC |
| Operating Temperature Max | 125°C |
| No. of Pins | 20Pins |
| Output Voltage | 52V |
| Product Range | - |
| Automotive Qualification Standard | - |
| Supply Voltage Min | 8V |
| Packaging | Each |
| Supply Voltage Max | 52V |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | L6205D |
| Quantity | Each |
| Technical Data Sheet EN |  |

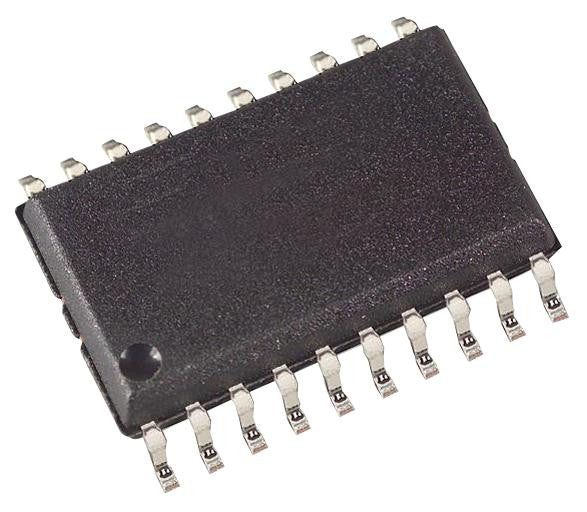

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
