Description

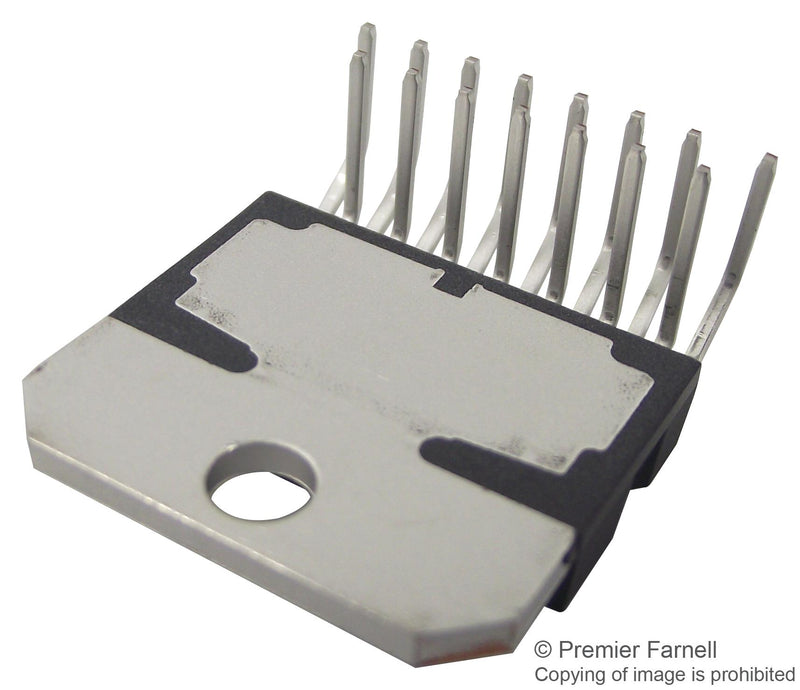

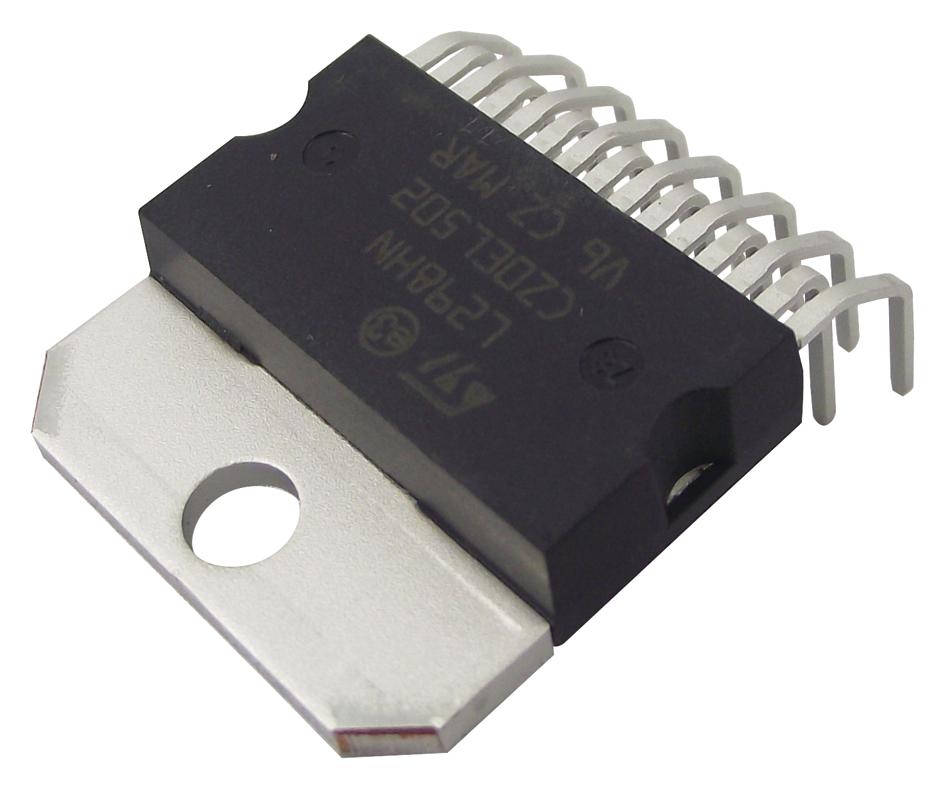

The L298HN is a dual full bridge driver in 15 pin Multiwatt package. This high voltage, high current dual full bridge driver is designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. Two enable inputs are provided to enable or disable device independently of input signals. The emitters of lower transistors of each bridge are connected together and corresponding external terminal can be used for connection of an external sensing resistor. An additional supply input is provided so that logic works at lower voltage.
- Operating supply voltage up to 46V
- Total DC current up to 4A
- Low saturation voltage
- Overtemperature protection
- Logical ''0'' input voltage up to 1.5V
- High noise immunity
- Junction operating temperature range from -25°C to 130°C
- Logic supply voltage range from 4.5V to 7V
Motor Drive & Control
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | STMICROELECTRONICS |
| Part Number | L298HN |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
