| ₹ 9556.46 includes GST and import duties. | |
| B2B customers can avail ₹ 1457.36 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

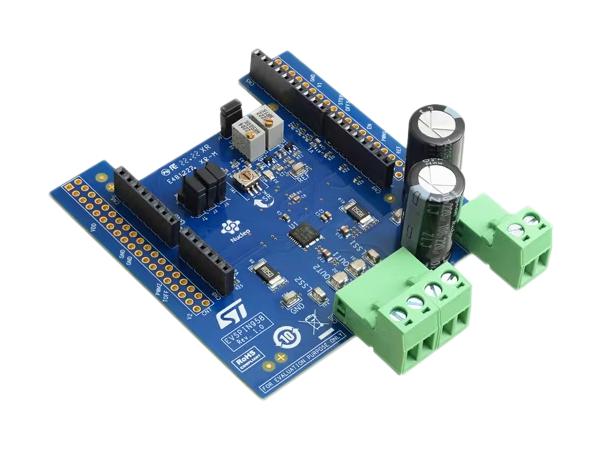

EVSPIN958 is a single brushed DC motor driver expansion board based on STSPIN958. It provides an affordable and easy-to-use solution for the implementation of brushed DC motor driving applications. Thanks to the parallel operation, it can be easily converted to a single half-bridge with double current capability. In addition to the internal current limiter, the integrated amplifiers allow it to be used in systems with external current control. The EVSPIN958 is compatible with the Arduino® UNO R3 connector and most STM32 Nucleo boards.
- Voltage range from 5V to 58V
- Phase current up to 5A RMS
- Adjustable output slew rate
- Seven different driving modes
- Current limiter with adjustable off-time
- Two integrated amplifiers with fixed gain
- Full protection set including: overcurrent, undervoltage lockout, and thermal shutdown
- Compatible with Arduino® UNO R3 connector and STM32 Nucleo boards
Product details
Other details
| Brand | STMICROELECTRONICS |
| Part Number | EVSPIN958 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 9365.33 |
| 3-5 | ₹ 9269.77 |
| 5-10 | ₹ 9078.64 |
| 10+ | ₹ 8887.51 |
Bulk discount will be automatically applied during checkout based on quantity.
