Description

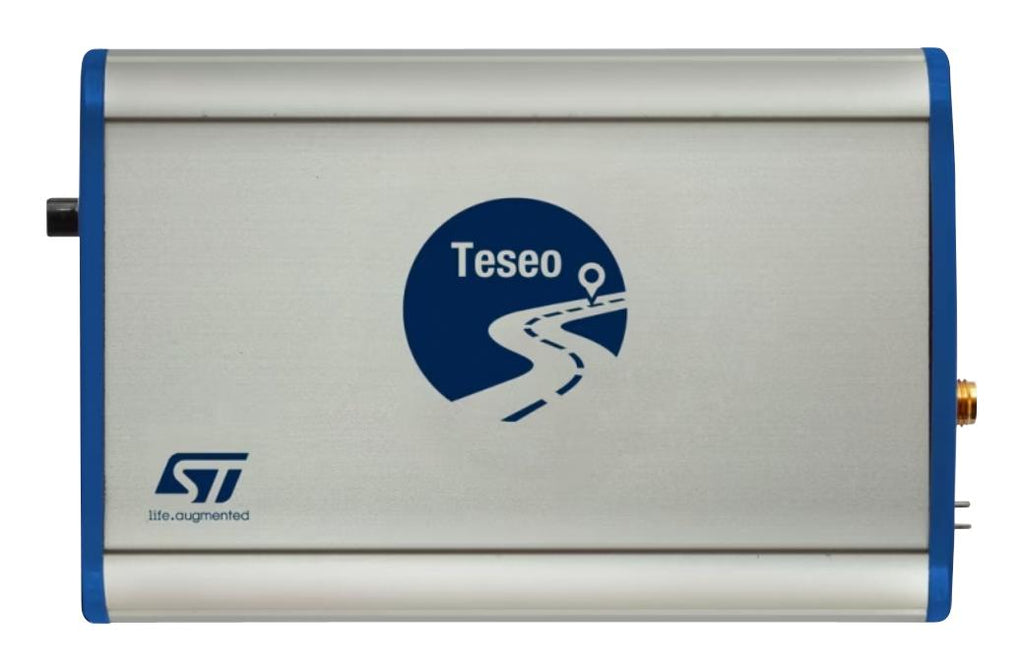

EVB-LIV4F is a TESEO-LIV4F dual-band module evaluation board. This is a complete standalone evaluation platform for Teseo-LIV4F dual-bands L1/L5 GNSS module ST solution. Teseo-LIV4F embeds the high-performance ARM microprocessor with embedded flash, UART and I2C serial communication interfaces.
- ST Teseo-LIV4F dual-bands L1/L5 GNSS platform
- Multiconstellation and multi-bands GNSS: GPS, Galileo Glonass, BeiDou, QZSS supported
- USB power supply and battery charge
- ON/OFF and reset buttons available
- NMEA over (UART by USB, Signals by connector)
- PPS output
- LEDS (PPS and power)
- Board powered thought USB or battery for standalone usage power supply
EVB-LIV4F evaluation board, GNSS antenna, USB cable.
Other details
| Brand | STMICROELECTRONICS |
| Part Number | EVB-LIV4F |
| Quantity | Each |
| Technical Data Sheet EN |  |
