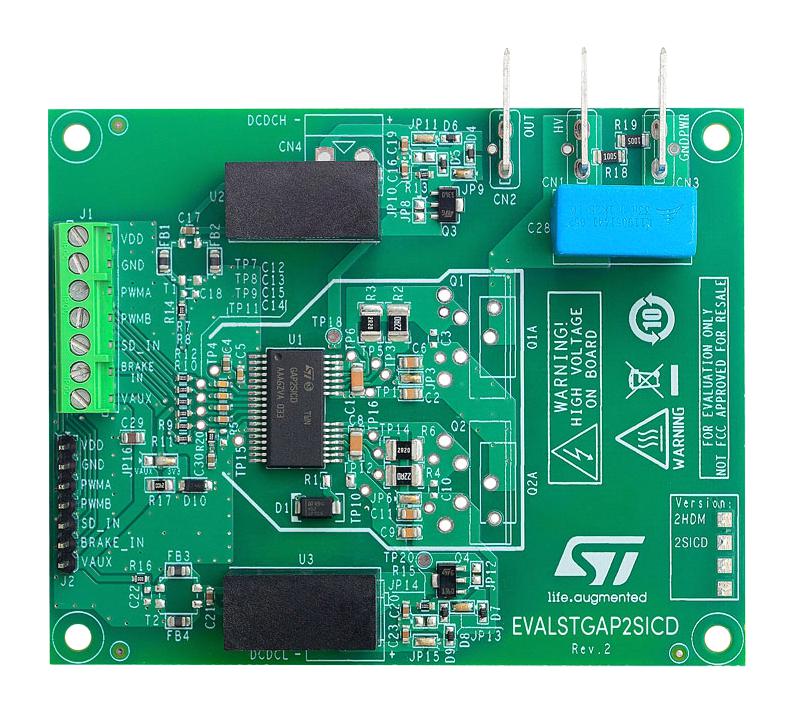

EVALSTGAP2SICD is an half bridge evaluation board designed to evaluate the STGAP2SiCD isolated dual gate driver. The gate driver is characterized by 4 A current capability and rail-to-rail outputs, making the device suitable also for high power applications such as motor drivers in industrial applications equipped with SiC power switches. The device integrates protection functions: dedicated SD and BRAKE pins are available, UVLO and thermal shutdown are included to easily design high reliability systems and the interlocking function prevents outputs from being high at the same time. The device allows implementing negative gate driving and the on-board isolated DC-DC converters allows working with optimized driving voltage for SiC MOSFETs. The EVALSTGAP2SICD board allows evaluating all the STGAP2SICD features while driving a half-bridge power stage with voltage rating up to 1200 V in TO-220 or TO-247 package.
- On-board isolated DC-DC converter to supply high&low-side gate drivers, VAUX=5V with 5.2KV isolation
- VDD logic supplied by on-board generated 3.3V or VAUX = 5V
- Easy jumper selection of driving voltage configuration: +17/0V, +17/-3V, +19/0V, +19/-3V
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
EVALSTGAP2SICD |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
