| ₹ 380.52 includes GST and import duties. | |
| B2B customers can avail ₹ 58.03 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

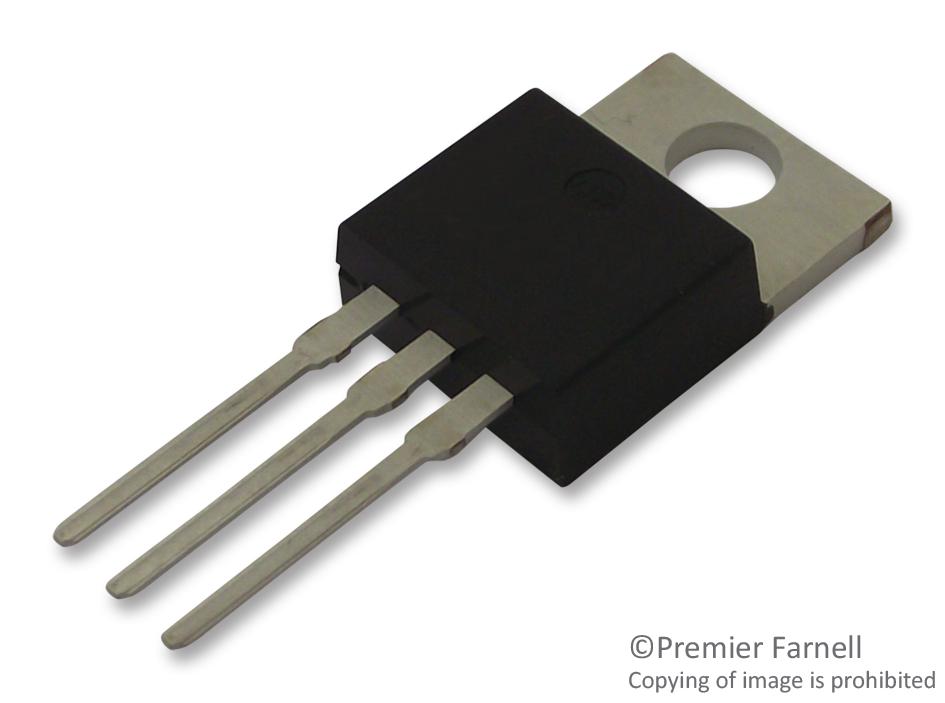

This is a Triac, 800 V, 25 A, TO-220AB, 50 mA, 1.3 V, 1 W product from STMICROELECTRONICS with the model number BTB24-800BRG
Product details
| Peak Repetitive Off-State Voltage, Vdrm | 800V |
| On State RMS Current IT(rms) | 25A |
| Triac Case Style | TO-220AB |
| Gate Trigger Current Max (QI), Igt | 50mA |
| Gate Trigger Voltage Max Vgt | 1.3V |
| Peak Gate Power | 1W |
| Peak Non Rep Surge Current Itsm 50Hz | 250A |
| Holding Current Max Ih | 80mA |
| No. of Pins | 3Pins |
| Operating Temperature Max | 125°C |
| Product Range | Snubberless BTB Series |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | BTB24-800BRG |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 372.91 |
| 3-5 | ₹ 369.1 |
| 5-10 | ₹ 361.49 |
| 10+ | ₹ 353.88 |
Bulk discount will be automatically applied during checkout based on quantity.
