Description
The BAT54 series from STMicroelectronics are surface mount small signal fast switching schottky barrier diodes. Featured with negligible switching losses and low capacitance, configured in single, common anode, common cathode, series, parallel and opposite diodes configurations.
- Available in SOD-23, SOD-323, SOD-523, SOT-23, SOT-323 or SOT-666 standard packages
- Peak repetitive reverse voltage of 40V
- Non repetitive peak forward surge current is 1A at tp 10ms
- Operating junction temperature range from -40°C to 150°C
- Reverse recovery time of 5ns
- Forward voltage of 900mV at IF 100mA
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Forward Voltage VF Max | 400mV |
| Operating Temperature Max | 150°C |
| No. of Pins | 2Pins |
| Forward Current If(AV) | 300mA |
| Product Range | BAT54 Series |
| Automotive Qualification Standard | - |
| Diode Configuration | Single |
| Repetitive Reverse Voltage Vrrm Max | 40V |
| Packaging | Cut Tape |

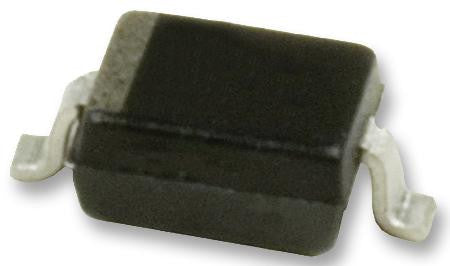

| Diode Case Style | SOD-323 |
| Forward Surge Current Ifsm Max | 1A |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | BAT54JFILM |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
