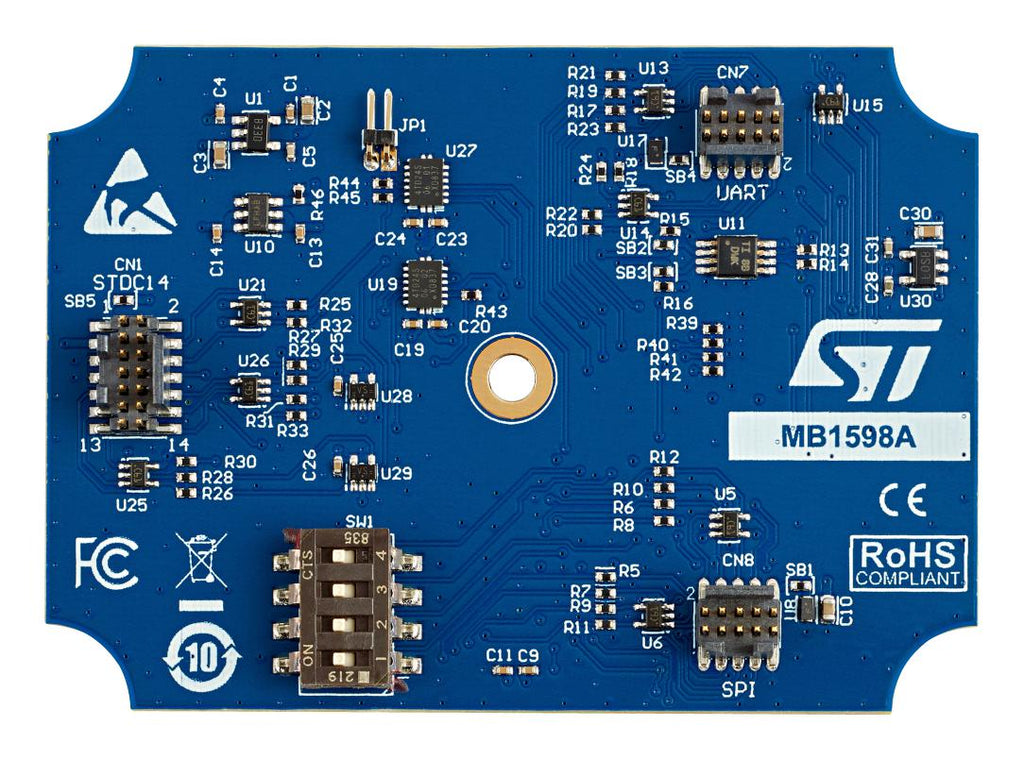

1.65V to 3.3V voltage adapter board for STLINK-V3SET board is an additional module for the STLINK-V3SET, performing voltage adaptation for STM32 microcontroller targets running below 3.3V down to 1.65 V. This module can be enclosed directly in the original STLINK-V3SET casing when used as an STM32 debugging probe (JTAG/SWD/SWV/VCP) through the STDC14 connector. It can be inserted also between the STLINK-V3SET main board (MB1441) and its baseline adapter board (MB1440) when providing access to bridge signals and other connectors. B-STLINK-VOLT is not required for STM8 targets for which voltage adaptation is performed on the baseline adapter board (MB1440) provided with the STLINKV3SET.
- Input/output level shifters for STM32 debug SWD, SWV and JTAG signals
- Input/output level shifters for VCP Virtual COM port (UART) signals
- Input/output level shifters for the bridge (SPI/UART/I2C/CAN/GPIOs) signals
- Closed casing when using the STDC14 connector (STM32 SWD, SWV and VCP)
- Compatible with the STLINK-V3SET adapter board (MB1440) for STM32 microcontrollers JTAG and bridge
- Operating temperature from 0°C to 50°C
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
B-STLINK-VOLT |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
