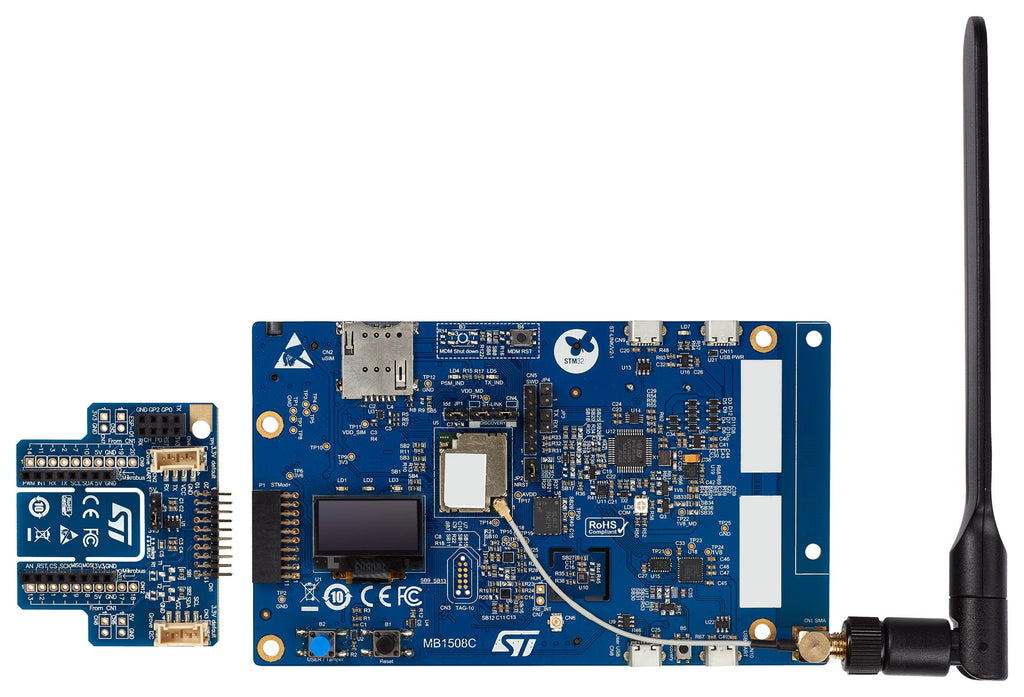

B-L462E-CELL1 Discovery Kit is a turnkey development platform for cellular IoT devices. The B-L462E-CELL1 Discovery Kit includes a low-power Discovery mainboard powered by an LBAD0ZZ1SE module, a global coverage antenna, and a fan-out board. The LBAD0ZZ1SE module features a STM32L462REY6TR microcontroller, an LBAD0XX1SC-DM ultra-small LTE Cat M/NB modem, and a ST4SIM GSMA-certified embedded SIM. The STM B-L462E-CELL1 Discovery Kit offers STMod+ and extended pins connectivity that delivers unlimited expansion capabilities with a large choice of specialized add-on boards. Furthermore, the fan-out board supports add-on boards using mikroBUS�, ESP�01, Grove I2C, Grove UART, and breadboard. The B-L462E-CELL1 Discovery kit includes an ST-LINK debugger/programmer, a comprehensive STM32Cube software library, and packaged software examples to connect to cloud servers seamlessly.
- LBAD0ZZ1SE module from Murata powered by STM32L462RE with built-in eSIM, LTE Cat M/NBIoT modem
- Ultra-low-power STM32L4 Series STM32L462REY6TR microcontroller
- 64MB of on-board Quad-SPI Flash memory from Micron®
- 16KB of I2C EEPROM (M24128-DFMN6TP) from STMicroelectronics
- 0.96inch 128 x 64 OLED screen with SPI interface
- Low-power Audio CODEC with PCM bus and I2C interface
- Ultra-low-power 3D accelerometer and 3D magnetometer (LSM303AGR)
- Capacitive digital sensor for relative humidity and temperature (HTS221)
- 260hPa to 1260hPa absolute digital output barometer (LPS22HH)
- 3 user LEDs, 2 push-buttons (user and reset)
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Silicon Manufacturer |
STMicroelectronics |
| No. of Bits |
32bit |
| Silicon Family Name |
STM32 |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-M4 |
| Silicon Core Number |
STM32L462REY6TR |
| Kit Contents |
IoT Discovery Kit STM32L462REY6TR |
| Product Range |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
B-L462E-CELL1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
