| ₹ 10161.42 includes GST and import duties. | |
| B2B customers can avail ₹ 1549.62 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

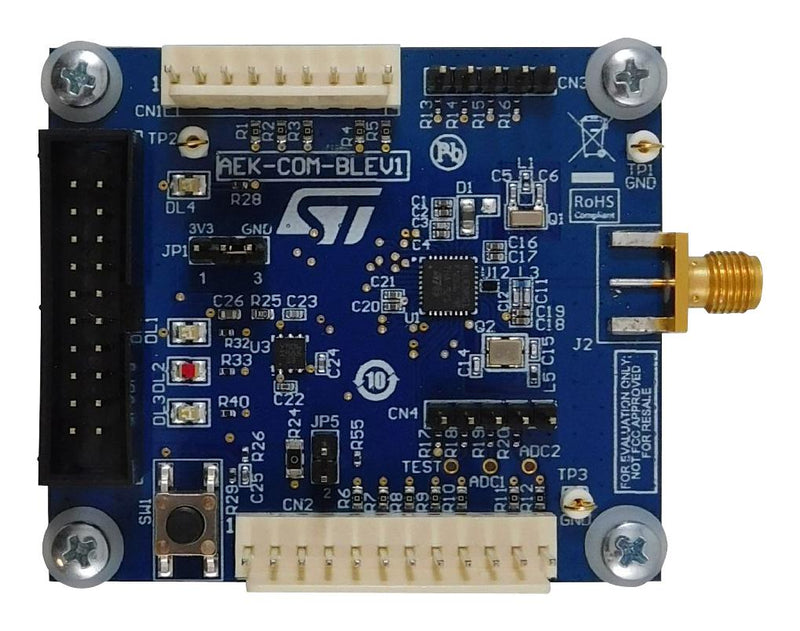

- Bluetooth communication board based on BlueNRG-1 low power Bluetooth® smart system on chip
- Up to +8dBm available output power (at antenna connector)
- Excellent receiver sensitivity (-88dBm)
- Very low power consumption of 7.7mA RX and 8.2mA TX at +0 dBm
- Bluetooth® low energy compliant, supports master, slave and simultaneous master and slave roles
- New integrated balun BALF-NRG-02D3 which integrates matching network and harmonics filter
- 3 user LEDs, JTAG debug connector
- Pre-programmed as network processor
- Board size is 60 x 40mm
BlueNRG-1 evaluation board, STSW-AEKBLE firmware, BALF-NRG-02D3 baluns, STSW-BLUENRG-DK software.
Other details
| Brand | STMICROELECTRONICS |
| Part Number | AEK-COM-BLEV1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 9958.19 |
| 3-5 | ₹ 9856.58 |
| 5-10 | ₹ 9653.35 |
| 10+ | ₹ 9450.12 |
Bulk discount will be automatically applied during checkout based on quantity.
