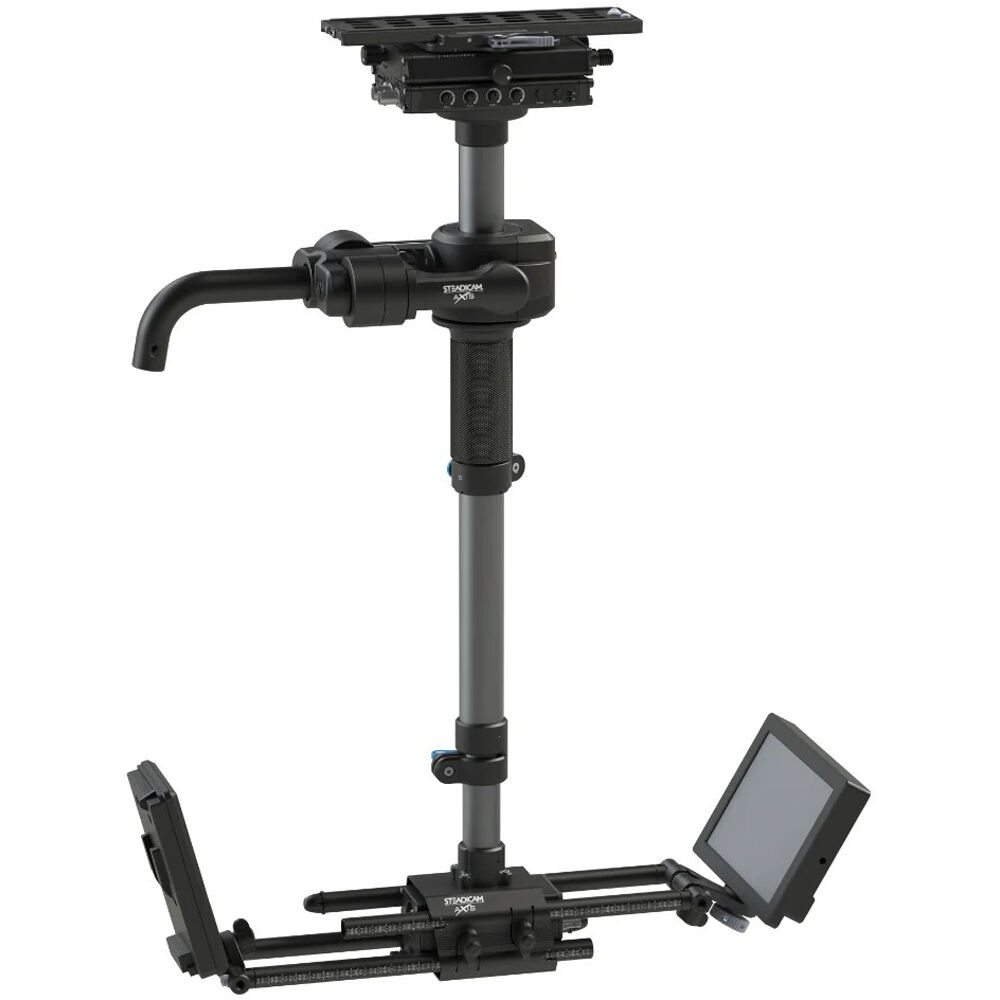

Steadicam Axis Electronic-Assisted Stabilizer (Gold Mount)

The Axis Electronic-Assisted Stabilizer is the first Steadicam system to offer Volt technology for roll, tilt, and pan axes, providing increased stability and control. This electronically assisted, 3-axis camera stabilizer enables the operator to directly control the framing of the shot without feeling disconnected from the camera. Operators can create dynamic camera movements with faster setup times, greater range of movement, and a shallower learning curve than earlier electronic gimbal systems. Time-saving features also include absolute encoding for the pan axis and the lack of a need to realign the sled upon startup. The Axis supports up to 20 lb loads when used with the included A-30 arm and A30 vest.

The Axis system also comes with a Vernier-controlled XY top stage, a Gold mount battery plate, a docking bracket with an arm hanger, and two BNC video cables. Separately available accessories include a low-mode bracket, camera power cables, 1/4"-20 screw-in balancing weights, and a soft carrying bag. The two-section carbon fiber post is extendable from 20.5 to 36" and has a tool-free clamp.

• Numerous motor control adjustments include pan, tilt, roll, damping, inertia, and dynamic braking functions that enable precise camera stabilization under various operating conditions
• Level calibration feature
• Two gimbal-mounted control buttons
• Quick startup with no required motor recalibration
• Tool-free gimbal and post clamps
• Compatible with 1/2" arm posts

• New dovetail plate with an integral bubble level and nonslip pads
• Vernier controlled XY top stage
• Adjustable lever lock and push-button safety release

Connections on the stage include:

• Front and rear D-Taps
• 3-pin push-pull 12V camera power connector
• Dual HD-SDI compatible BNC video connectors
• Volt interface connector
• USB-C connector for software upgradability

• Pivoting, graduated mounts for the monitor and battery
• 15mm LWS battery and monitor rod systems with M12 internal threading

Connections on the base include:

• 3-pin 12V camera power
• Dual HD-SDI BNC video connectors
• 3-pin monitor power connector
• Six 1/4"-20 threads for balance weights and accessories
• All-metric construction
• Includes an extendable docking bracket with an arm hanger
• Includes a Gold mount battery plate
• Separately available 7" high bright 16:9 LCD monitor with video and power cable

Steadicam AXIS Electronic Assisted Stabilizer Specs

Stabilizer Type	Vest System
Load Capacity	20 lb / 9.1 kg
Camera Mount	Dovetail Plate
Height	20.5 to 36.0" / 52 to 91.4 cm
Center Column Diameter	1.25" / 31.8 mm
Number of Sections	2
Weight	9.37 lb / 4.25 kg
Power I/O	1x LEMO 3-Pin (12 VDC) Output 1x LEMO 3-Pin Output 2x D-Tap Output
Video I/O	1x BNC (HD-SDI) Input 1x BNC (HD-SDI) Output
Other I/O	1x USB-C (Firmware)
Counterweights	No
Material of Construction	Carbon Fiber
Operating Conditions	Not Specified by Manufacturer
Storage Conditions	Not Specified by Manufacturer

Package Weight	45 lb
Box Dimensions (LxWxH)	30.5 x 24.5 x 13.5"
